DSP511 4K Signage Player with 11th Gen i5/i3/Celeron
DSP511 Digital Signage Player with 11th Gen Intel® Core™ i5/i & Celeron® Processor, 4 HDMI, 4 USB and 2.5G LAN
Key Features:
- 11th gen Intel® Core™ i5/i3 & Celeron® processor (Tiger Lake)
- 2 DDR4-3200 SO-DIMM for up to 64GB
- 4 HDMI 2.0 w/4K supported
- 4 USB, 1 2.5G LAN and 1 GbE LAN
- 1 M.2 Key E 2230 for Wi-Fi/BT
- 1 M.2 Key B 3052 for 5G/4G LTE
- 1 M.2 Key M 2280 for storage

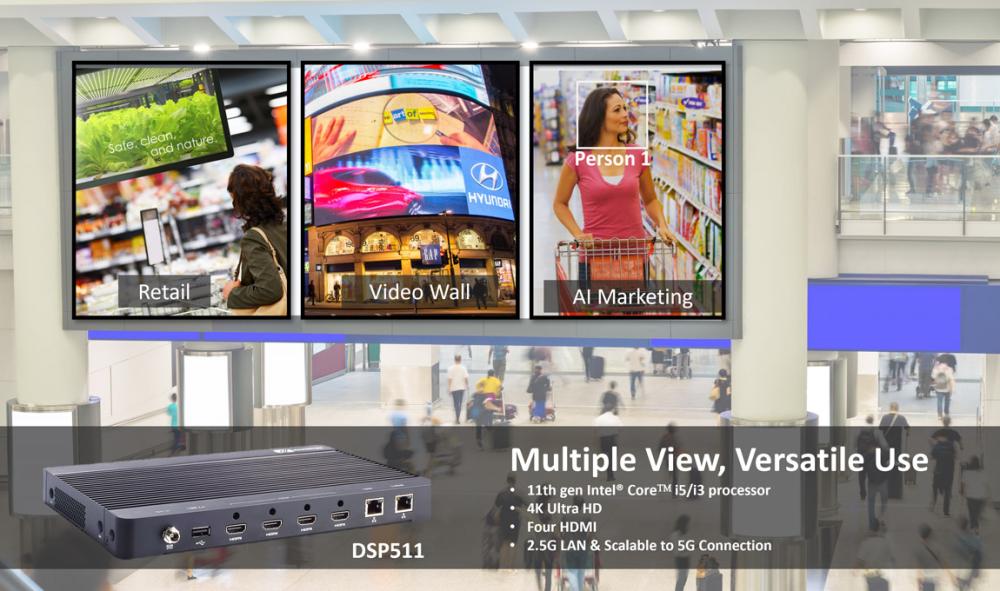

The DSP511 is a 4K Ultra HD digital signage player with four HDMI 2.0 ports and a 2.5G Ethernet port, which enhances multiple view and real-time displays. The outstanding signage player is powered by the 11th generation Intel® Core™ i5/i3 (codename: Tiger Lake-UP3) which makes it much more versatile in smart retail applications such as interactive advertisement or AI precision marketing.
In addition to the standard GbE LAN port, it adds a 2.5G LAN port to support faster internet transmission to upload videos and advertisements in higher resolutions for real-time display. It has four HDMI 2.0 ports for multiple displays and the resolution can reach 4K 60Hz. The DSP511 utilizes the Intel® Tiger Lake-UP3 processor; with Iris Xe Graphics, the computing performance is boosted. While the computing capability is powerful enough, even for Artificial Intelligence (AI) processing, the digital signage player doesn’t need a discrete graphics card. Measuring 260 x 160 x 26 mm, the DSP511 is perfectly suited for menu board and video wall solutions in airports, shopping malls, and other commercial premises that require reliable 24/7 operation.
The DSP511 with a low power consumption design has DDR4-3200 SO-DIMM, a maximum of up to 64GB that could ensure the display quality. The M.2 Key M 2280 slot is compatible with SATA and NVMe for storage, which gives the player abundant space to save high-resolution videos or data. To meet the requirements of diverse applications, it provides rich I/O options including three USB 3.2 Gen 2 ports, one USB 2.0 port, four HDMI ports, one audio jack, one RS-232 port, and six antenna openings.
In addition to providing quad 4K, the HDMI 2.0 ports offer hardware EDID (Extended Display Identification Data) and independent audio outputs. The expansion interfaces include one M.2 Key E for Wi-Fi/BT, one M.2 Key B for 5G/4G LTE, and one SIM card slot.
Advanced Features:
- 11th gen Intel Core i5/i3 & Celeron® processor (Tiger Lake-UP3)
- 2 DDR4-3200 SO-DIMM for up to 64GB
- 4 HDMI 2.0 with 4K supported
- One 2.5G LAN, 1 GbE LAN, and 4 USB
- 1 M.2 Key E 2230 for Wi-Fi/BT
- 1 M.2 Key B 3052 for 5G/4G LTE
- 1 M.2 Key M 2280 for storage
| CPU |
|
| Chipset |
|
| System Memory |
|
| Watchdog Timer |
|
| COM |
|
| USB |
|
| Ethernet |
|
| Display |
|
| Audio |
|
| Storage |
|
| Expansion |
|
| Others |
|
| Wi-Fi |
|
| Power Supply |
|
| Vibration Endurance |
|
| Operating Temperature |
|
| Dimensions (W x D x H) |
|
| Weight (net/gross) |
|
| Mounting |
|
| EOS Support |
|
| Software Support |
|
| Certifications |
|
