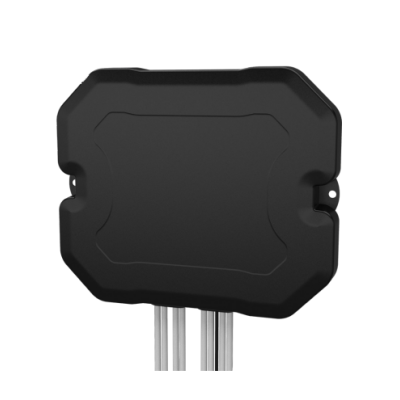

BAT[G]M4-6-60 4x4 MiMo 4G/5G Adhesive Mount Antenna

In stock
SKU:
BAT[X]M4-6-60-[X]

4x4 MiMo 4G/5G WiFi-6e GPS/GNSS Adhesive Mount Antenna

Key Features:

  • Adhesive or screw mount to any non-conductive surface
  • Mount on or under vehicle dashboard or parcel shelf
  • Suitable for mobility or enterprise/branch applications
  • 4x4 MiMo 617-960/1427-6000MHz
  • Up to 4x4 MiMo WiFi 6e (optional)
  • GPS/GNSS L1 or L1/L5 (optional)

Enquire Now
Enquire about this product:

The Panorama BAT[X]M4 series are discrete 4x4 MiMo antenna solutions for 4G/5G scenarios with GPS/GNSS and 2x2, 3x3 or 4x4 Dual-band 2.4/5.0-7.2GHz WiFi 6e options. 4G/5G antenna elements spanning from 617-960/1427-6000MHz provide robust communication links, ensuring network coverage in difficult areas.

Can be equipped with a GPS/GNSS module with advanced filtering capabilities for either L1/E1/G1/B1 only or dual band L1/E1/G1/B1 with L5/E5a. The antenna is IP66 rated and designed to be mounted on or under a vehicle dashboard or parcel shelf but can be mounted on any nonconductive surface.

The version without GPS can be mounted vertically on walls or panels. The BAT series comes with an integrated low loss flame retardant cable which meets the requirements of UN ECE R118 and EN45545-2.

Key Features:

  • Adhesive or screw mount to any non-conductive surface
  • Mount on or under vehicle dashboard or parcel shelf
  • Suitable for mobility or enterprise/branch applications
  • 4x4 MiMo 617-960/1427-6000MHz
  • Up to 4x4 MiMo WiFi 6e (optional)
  • GPS/GNSS L1 or L1/L5 (optional)


This product is listed in Panorama Antennas, Transport
Part Number
    BATGM4-6-60-Q BATGM4-6-60-T BATGM4-6-60-D BATGM4-6-60
Electrical Data
Frequency Range (MHz) Cell/LTE 4x 617-960 / 1427-6000
  Wi-Fi 4x 2396-7125 3x 2396-7125 2x 2396-7125
  GPS/GNSS 1x 1559-1612
Typical VSWR* Cell Elements <2.5:1
  WiFi Elements < 2:1
Isolation (dB)** Cell Elements ≥ 7 (617-960MHz) / ≥ 12 (1427-1518MHz) / ≥ 12 (1710-2700MHz) / ≥ 20 (3300-6000MHz)
  WiFi Elements >20
Pattern   Omni-directional
Impedence   50Ω
Max Input Power(W)   5
GPS/GNSS Data
Frequency Range (MHz) 1559-1612
Impedance 50Ω
LNA Gain 26dB
Voltage/Current 3-5v 17ma Typical
Polarisation Right Hand Circular
Mechanical Data
Dimensions (mm) Height 25 (1")
  Width 232 (13.78")
  Length 196 (9.1")
Environmental Specfication
Operating Temp (°C) -40° / +80°C ( -40° / +176°F )
Radome Material ASA
Radome Material Approvals HB (UL 94) / UL746C F1
Ingress Protection IP66
Mounting Data
Fixing Adhesive Pad / 2 × mounting holes to suit 5.5mm / No12 screws
Cable Data   4G/5G Cables
WiFi Cables
GPS/GNSS Cable
Cable Type   C32 (UN ECE R118) FR RG174 (UN ECE R118)
Cable Diameter (mm)   5 (0.2”) 2.8 (0.1")
Cable Length (m) 3m (9.8')
Termination 4G/5G 4x SMA Plug (m)
  WiFi  4x Rev Pol SMA 3x Rev Pol SMA 2x Rev Pol SMA
  GPS/GNSS 1x SMA Plug (m)



*Measured in free space with 0.5m (20”) of CS32 cable **Worst case isolation measured with 0.5m (1.5') CS32 cable
