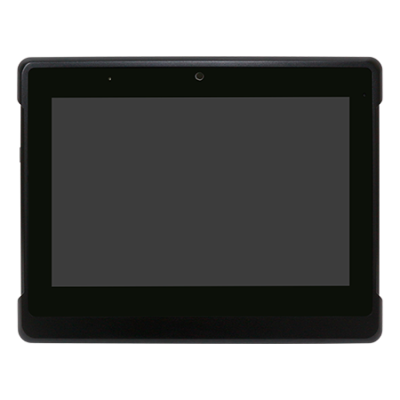

AVA-610APM 10.1" ARM Cortex A53 In-Vehicle Panel PC
10.1" NXP i.MX8M Quad ARM Cortex A53 Panel PC
Key Features:
- 10.1” LCD Panel, optional high brightness LED backlight LCD
- NXP i.MX8M Quad Plus Processor
- Fanless design
- Total IP65 with isolated M12 connectors
- Operating system: Android 10.0
- Wide range DC 9~60V power input
- CE/FCC/E Mark
The AVA-610APM is a rugged 10.1-inch industrial panel PC designed for demanding environments where reliability, versatility, and performance are essential. Powered by the NXP i.MX8M Quad Plus processor with four ARM Cortex-A53 cores running at 1.8GHz, this fanless system delivers efficient processing while maintaining low power consumption. It features 4GB of LPDDR4 memory and 32GB of onboard eMMC storage, offering solid performance for embedded and HMI applications.
Its 10.1-inch TFT-LCD panel offers a bright and vibrant WXGA 1280x800 resolution display with wide 170-degree viewing angles and optional high-brightness up to 1000 nits for outdoor or high-ambient light usage. The projected capacitive touchscreen provides over 90% light transmission for a clear, responsive user experience. Designed with full IP65 protection, the AVA-610APM is housed in an engineering plastic bezel and equipped with waterproof M12 connectors, making it resistant to water, dust, and harsh industrial conditions.
Connectivity options include multiple M12 I/O ports for USB, serial, CAN bus, and GbE LAN, along with expansion support via two full-size mini-PCIe slots for Wi-Fi, Bluetooth, or LTE modules. The device also includes integrated speakers, optional RFID, camera, and ambient light sensor support, and rear-side function keys for user customization. With its wide 9–60V DC input range, Android 11 operating system support, and certifications, including CE, FCC, and E-Mark, the AVA-610APM is an ideal solution for transportation, automation, and outdoor control applications.
|
Category |
Specification |
|---|---|
|
Display |
10.1" TFT-LCD |
|
Resolution |
1280 x 800 (WXGA) |
|
Colors |
16.7M |
|
Brightness |
350 nits (1000 nits optional) |
|
Viewing Angle |
170° (H) / 170° (V) |
|
Contrast Ratio |
800:1 |
|
Backlight Life |
50,000 hrs |
|
Touch Screen |
Projected Capacitive |
|
Touch Interface |
USB |
|
Light Transmission |
Over 90% |
|
CPU |
NXP i.MX8M Quad Plus, 4x Cortex-A53 @ 1.8GHz |
|
Memory |
4GB LPDDR4 (onboard) |
|
Storage |
32GB eMMC NAND Flash (onboard) |
|
Speakers |
2 x 2W IP65 Speakers |
|
Function Keys |
1 x Power, 2 x Programmable (default volume +/-) |
|
Rear I/O (M12) |
|
|
• Power |
1 x M12 Male, 3-pin (DC 9–60V) |
|
• USB |
1 x M12 Female, 8-pin (2 x USB2.0) |
|
• Serial |
1 x M12 Female, 8-pin (RS-232/422/485) |
|
• CAN Bus |
1 x M12 Female, 8-pin (2-ch CAN) |
|
• LAN |
1 x M12 Female, 8-pin (1 x GbE) |
|
• Antennas |
4 x SMA (Wi-Fi/BT/LTE/GPS; 1 optional for 3.5mm jack) |
|
Edge I/O (under waterproof cover) |
|
|
• USB |
1 x USB2.0 Type-A |
|
• SIM |
1 x Nano SIM slot |
|
• MicroSD |
1 x Micro SDXC slot |
|
Expansion Slots |
|
|
• Slot 1 |
Full-size mini-PCIe (USB2.0 for HSUPA/LTE) |
|
• Slot 2 |
Full-size mini-PCIe (PCIe+USB2.0 for WiFi/BT) |
|
Optional Features |
RFID, Ambient Light Sensor, 5MP Camera |
|
Operating System |
Android 11 |
|
Power Input |
DC 9–60V (optional: DC 9–60V + Ignition/VCC) |
|
Power Consumption |
Max: 16W |
|
Cooling |
Fanless |
|
Construction |
Engineering plastic (front/rear bezel) |
|
Mounting Options |
VESA 75x75, RAM Mount (2.25" Ball "D" Size) |
|
Ingress Protection |
Full IP65 |
|
Dimensions |
269 x 210 x 42 mm |
|
Net Weight |
1.5 kg |
|
Operating Temp |
0~50°C / -20°C~60°C for option |
|
Storage Temp |
-30~70°C |
|
Humidity |
10% to 90% @ 40°C, non-condensing |
|
Certifications |
CE/FCC Class A, E-Mark (E24) |
AVA-610APM
10.1” WXGA total IP65 design plastic panel PC, NXP iMX8M Quad Plus Processor, DDR4 4GB on board, 32GB eMMC, M12 connectors, with projected capacitive touch, wide range 9~60V DC power input
