AV800-D27-A45S4 IP65 Military Server Xeon D-2796NT w/ GPU
Designed to meet MIL-810, MIL-461 EMC/EMI, IP65 Sealed with External Cooling Blade
Key Features:
- Ultra High-Performance Intel Xeon Ice Lake-D, D-2796NT (20xCores)
- NVIDIA MXM-GPU Quadro RTX4500 5888 CUDA
- MIL-STD 810 Thermal, Vibration, Shock, Humidity
- 1x 25GbE SFP28, 1x10GbE, 2x 1GbE LAN
- Up to 512GB LRDIMM/256GB RDIMM
- 2x NVMe PCIe Gen 4.0 U.2
- Dual Removable Anti-Drop Solid-State Disk
- IP65 Sealed with External Cooling Blade
- MIL-STD-810 Thermal, Shock, Vibration, Humidity
- MIL-STD 461 EMI/EMC 18V~36V DC-IN(28VDC)
- Extreme Temperature Support -20~+60°C
Artificial intelligence (AI) is quickly becoming one of the most crucial elements of business success. Today, deploying powerful computing platforms that can accelerate and scale their AI-based products and services while adapting them to harsh environments has become vital for many successful military applications.
7Starlake is innovating to address the emerging high-throughput inference market driven by IoT devices generating huge amounts of data. The combination of NVIDIA Tensor RT and the new architecture-based GeForce Accelerator is ideal for demanding and latency-sensitive workloads.
Key Features:
-
Ultra High-Performance Intel Xeon Ice Lake-D, D-2796NT (20xCores)
-
NVIDIA MXM-GPU Quadro RTX4500 5888 CUDA
-
MIL-STD 810 Thermal, Vibration, Shock, Humidity
-
1x 25GbE SFP28, 1x10GbE, 2x 1GbE LAN
-
Up to 512GB LRDIMM/256GB RDIMM
-
2x NVMe PCIe Gen 4.0 U.2
-
Dual Removable Anti-Drop Solid-State Disk
-
IP65 Sealed with External Cooling Blade
-
MIL-STD-810 Thermal, Shock, Vibration, Humidity
-
MIL-STD 461 EMI/EMC 18V~36V DC-IN(28VDC)
-
Extreme Temperature Support -20~+60°C
|
Processor |
Intel® Xeon® D-2796NT, 20core, 40 thread, 30MB Cache, 2.0/3.1GHz. Single socket FCBGA-2579 , up to 120W TDP |
|
Memory type |
64GB RDIMM ECC DDR4-3200/2933 MT/s, Up to 512GB in 4 DIMM Slot |
|
Chipset |
Intel® SoC Integrated |
|
GPU |
1x NVidia® RTX A4500, 5888 CUDA Cores, PCIe Gen4.0 x16 |
|
Display |
VGA, Resolution up to 1920x1200@60Hz 32bpp |
|
Chipset |
Aspeed AST2600 BMC |
|
Ethernet Controller |
25G SFP28 LAN via SoC 10G LAN via Intel® X550 Gigabit LAN via Intel®i350 |
|
LAN |
2x 1GBase-T, 1x 10GBase-T Lan, 1x 25GBase SFP |
|
Storage |
1x M.2 NVMe 2TB M2. 2280 SSD 2x U.2 NVMe 8TB 2.5” SSD hot-swap |
|
Power Type |
18V~36V DV Input |
|
Dimension |
405 mm x 316 mm x 204.8 mm (W x L x H) |

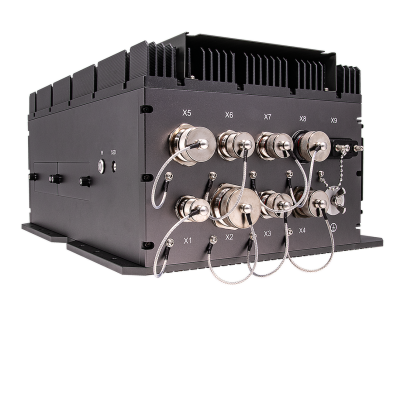

| Front I/O | |
|---|---|
| X1 | 1x CAN BUS TVS07RF-9-98S connector |
| X2 | 1x 10GbE(SFP+) LCFTV70NN connector |
| X3 | 1x 10GbE TVSS07RF-11-35SA connector |
| X4 | 1x DC-IN TV07RW-13-4P connector |
| X5 | 4x RS232/422/485 24FD35SN connector |
| X6 | 1x GbE TVS07RF-11-35S-LC connector |
| X7 | 1x GbE TVS07RF-11-35S-LC connector |
| X8 | 1x USB3.0 USB3FTV7AZNF312 connector |
| X9 | 1x VGA D-sub 15 connector with waterproof cap |
| Environmental | |
|
MIL-STD-810 Test |
Method 500.5, Procedures I and II (Altitude, Operation): 12,192 M, (40,000 ft) for the initial cabin altitude (18.8 Kpa or 2.73 Psia) Method 500.5, Procedures III and IV (Altitude, Non-Operation): 15,240, (50,000 ft) for the initial cabin altitude (14.9 Kpa or 2.16 Psia) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) Method 507.5, Procedure II (Temperature & Humidity) Method 509.7 Salt Spray (50±5)g/L Method 514.6, Vibration Category 24/Non-Operating (Category 20 & 4, Vibration) Method 514.6, Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 516.6, Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6, Shock-Procedure I Operating (Mechanical Shock) |
|
Reliability |
Conduction Cooling. Designed and manufactured using ISO 9001 Certified Quality Program |
|
MIL-STD-461 |
CE102 basic curve, 10 kHz - 30 MHz RE102-4, (1.5 MHz) -30 MHz - 5 GHz RS103, 200 MHz - 3.2 GHz, 50 V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-3: 10 V/m, EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV CE and FCC |
|
MIL-STD-1275 |
Steady State – 20V~33V, Surge Low – 18V/500ms, Surge High – 100V/500ms Emitted spikes Injected Voltage surges Emitted voltage surges Voltage ripple (2V) Voltage spikes Starting Operation Reverse polarity |
|
Operating Temp. |
-20 to +60°C |
|
Storage Temp. |
-40 to +85°C |
|
Relative Humidity |
5% to 95%, non-condensing |
|
Operating System |
|
|
Operating System |
Windows 10 64Bit, Linux by option |
|
RoHS |
RoHS compliant |
