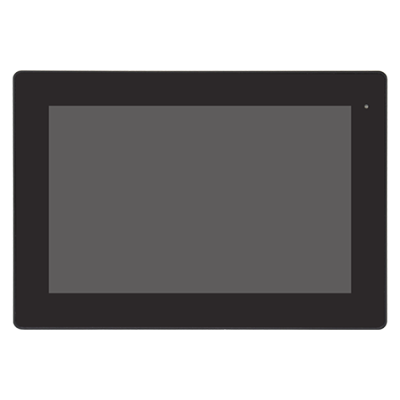

AUHMI-910CP(H) 10.1” Modular 11th Gen Intel Fanless Panel PC
Aplex AUHMI-910CP(H) 10.1” Modular 11th Gen Intel Fanless Panel PC Fanless IP66 TPM2.0
Key Features:
- 10.1” Industrial Compact Size Panel PC
- 11th Gen. Intel Core i3/i5 Processor
- 2 x 260-pin SO-DIMM DDR4 slot, up to 64GB 3200MHz
- Flat Front Panel Touch Screen with IP66 front bezel
- Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Support Expansion via Full-size Mini-PCIe and M.2 slots
- Support TPM2.0 hardware security
- High Brightness 1,000 nits for option
AUHMI-910CP
10.1" WXGA fanless HMI barebone with Intel Intel 11th Gen. Core i3-1115G4E/ i5-1145G7E, 2 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
AUHMI-910CPH
10.1" WXGA high brightness fanless HMI barebone with Intel Intel 11th Gen. Core i3- 1115G4E/ i5-1145G7E, 2 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
The 10.1" Industrial Compact Size Panel PC is powered by an 11th Gen. Intel Core i3/i5 Processor, providing robust performance. It features two 260-pin SO-DIMM DDR4 slots, supporting memory expansion of up to 64GB at 3200MHz for enhanced multitasking capabilities. The panel PC boasts a flat front panel with an IP66-rated front bezel, ensuring durability and protection against dust and water.
With a fanless design, the device operates quietly and efficiently, reducing maintenance needs. It supports a wide-ranging DC power input from 9 to 36V, allowing flexible power options. Additionally, the panel PC offers expansion possibilities through full-size Mini-PCIe and M.2 slots, enabling the integration of additional functionalities.
To ensure data security, the device supports TPM2.0 hardware security features. For applications requiring high brightness displays, there is an option available for a 1,000 nits high brightness screen, ensuring optimal visibility in various environments.
Key Features:
- 10.1” Industrial Compact Size Panel PC
- 11th Gen. Intel Core i3/i5 Processor
- 2 x 260-pin SO-DIMM DDR4 slot, up to 64GB 3200MHz
- Flat Front Panel Touch Screen with IP66 front bezel
- Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Support Expansion via Full-size Mini-PCIe and M.2 slots
- Support TPM2.0 hardware security
- High Brightness 1,000 nits for option
|
System |
||||
|
11th Gen. Intel Core i3/i5 Processors |
||||
|
CPU |
Core i3-1115G4E (Dual Core, 6 MB cache, 2.20 GHz) |
|||
|
Core i5-1145G7E (Quad Core, 8 MB cache, 1.50 GHz) |
||||
|
System Chipset |
SoC |
|||
|
Memory |
2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz |
|||
|
TPM |
TPM 2.0 |
|||
|
I/O Port |
||||
|
USB |
4 x USB 3.0 type A |
|||
|
1 x DB-9 connector, including: |
||||
|
Serial |
* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper(COM1) |
|||
|
* 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable |
||||
|
Audio |
1 x Audio Line Out |
|||
|
DP |
1 x DP / HDMI |
|||
|
LAN |
2 x GbE LAN RJ-45 |
|||
|
Power |
1 x 3-pin Terminal Block Connector1 x 2-pin Power Switch Connector |
|||
|
4G LTE |
||||
|
Wi-Fi + Bluetooth |
||||
|
4 x USB 2.0 type A (TB-528U4) |
||||
|
4 x USB 2.0 type A + 1 x Mini-PCIe + 1 SIM slot (TB-528U4ME1) |
||||
|
1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2) |
||||
|
1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1) |
||||
|
2 x COM (RS-232) (TB-528C2) |
||||
|
Option |
2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1) |
|||
|
2 x COM (RS-422/485, isolated) (TB-528C2I) |
||||
|
2 x CAN (TB-528CAN2) |
||||
|
1 x LAN + 2 x USB 2.0 (TB-528E1U2) |
||||
|
1 x LAN(45W isolated PoE PD) + 2 x USB 2.0 type A (TB528E1U2UPOE)* |
||||
|
Backup Battery |
||||
|
(TB-528 Series or backup battery only be inserted in either one) |
||||
|
Either high brightness panel or backup battery can be installed in HMI |
||||
|
Storage Space |
||||
|
Storage |
1 x M.2 M-Key 2280 (Support PCIe/SATA3) |
|||
|
Expansion |
||||
|
1 x Mini-PCIe slot (full size) |
||||
|
Onboard Expansion |
1 x M.2 E key for Wifi/BT Module |
|||
|
1 x Nano SIM slot |
||||
|
Display |
Standard |
Optional High Brightness |
||
|
Display Type |
10.1" TFT-LCD |
10.1" TFT-LCD |
||
|
Max. Resolution |
1280 x 800 |
1280 x 800 |
||
|
Max. Color |
16.7M |
16.2M |
||
|
Luminance (cd/m2) |
350 |
1000 |
||
|
View Angle |
170(H)/170(V) |
170(H)/170(V) |
||
|
Contrast |
800:1 |
1300:1 |
||
|
Backlight Lifetime |
30,000 hrs |
50,000 hrs |
||
|
Touch Screen |
||||
|
Type |
Projected Capacitive Touch |
|||
|
Interface |
USB |
|||
|
Light Transmission(%) |
90% |
|||
|
Power |
||||
|
Power Input |
DC 9~36V |
|||
|
Power Consumption |
48W (HELIO-910CP with i3) |
|||
|
Mechanical |
||||
|
Construction |
Aluminum Die-casting chassis |
|||
|
Mounting |
Panel Mount, VESA 100 x 100 |
|||
|
Dimensions (WxHxD) |
269 x 189 x 51 mm |
|||
|
IP Rating |
IP66 Compliant Front Bezel |
|||
|
Net Weight |
1.8 kg |
|||
|
Environmental |
||||
|
Operating Temperature |
0~50 ̊C / -20~60 ̊C (option) |
|||
|
Storage Temperature |
-30~70 ̊C |
|||
|
Humidity |
10 to 90%@ 40 ̊C, non-condensing |
|||
|
Certificate |
CE/FCC, Class A |
|||
|
Operating System Support |
Windows 10 IoT, Windows 11 |
|||
|
AUHMI-910CP |
10.1" WXGA fanless HMI barebone with Intel Intel 11th Gen. Core i3-1115G4E/ i5-1145G7E, 2 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis. |
|||
|
AUHMI-910CPH |
10.1" WXGA high brightness fanless HMI barebone with Intel Intel 11th Gen. Core i3- 1115G4E/ i5-1145G7E, 2 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis. |
|||
|
*PoE limitation: CPU turbo off, rear I/O no loading, 70% LED backlight, PSE cable length < 50m |
||||
