ATC3530 Jetson Xavier NX Accelerated AI Edge Computer

In stock
SKU:
ATC3530-IP7-4C, ATC3530-IP7-4M
Brand: Nexcom

ATC3530 NVIDIA Jetson Xavier NX Solution Accelerated AI Edge Computer

Key Features:

  • AI Edge In-vehicle computer
  • 4-Ch MIPI SerDes, 1080p60/4Kp30 over 15m cable (ATC 3530-IP7-4M)
  • Built-in NVIDIA Jetson Xavier NX SOM, up to 21 TOPS compute
  • 4-port GbE PoE+ for IP CAM/LiDAR sensors (ATC 3530-IP7-4C)
  • HEVC/H.265 hardware CODEC, 32 x 1080p30 compute power
  • Wide range operating temperature of -30~70°C
  • The rugged, fanless design with an IP67 rating
  • Ultra-speed PCIe 3.0 x4 NVMe SSD for data integrity
  • NEXCOM Aided Linux (NAL) OS w/ JetPack4.5 integrated
  • Expansible for LTE/5G NR & Wi-Fi 5/6
  • 9~36V DC-in with ignition control & OCP/OVP
  • CE/FCC, UKCA, Emark certified

Enquire Now
Enquire about this product:

Artificial intelligence (AI) has become a necessary component of automated vehicle technology. With a built-in high performance/watt NVIDIA® Jetson XavierTM NX SOM, the ATC 3530 can deliver up to 21 TOPS for running modern AI workloads while consuming only 15W of power, making it ideal for autonomous machines such as agriculture, construction, mining, and heavy trucks.

The ATC 3530 is a fanless, IP67-rated design with a small footprint. It has 936VDC with IGN control, 4 MIPI CSI-2 with PoC for 15m of 4Kp30/1080p60 reach, or 4 GbE PoE for deploying IP video sensors. ATC 3530 also includes GbE/PoE, USB 3.0/2.0, isolation CAN, RS232, Console, DI/DO, OTG, and HDMI.

Key Features:

  • AI Edge In-vehicle computer
  • 4-Ch MIPI SerDes, 1080p60/4Kp30 over 15m cable (ATC 3530-IP7-4M)
  • Built-in NVIDIA® Jetson Xavier™ NX SOM, up to 21 TOPS compute
  • 4-port GbE PoE+ for IP CAM/LiDAR sensors (ATC 3530-IP7-4C)
  • HEVC/H.265 hardware CODEC, 32 x 1080p30 compute power
  • Wide range operating temperature of -30~70°C
  • The rugged, fanless design with an IP67 rating
  • Ultra-speed PCIe 3.0 x4 NVMe SSD for data integrity
  • NEXCOM Aided Linux (NAL) OS w/ JetPack4.5 integrated
  • Expansible for LTE/5G NR & Wi-Fi 5/6
  • 9~36V DC-in with ignition control & OCP/OVP
  • CE/FCC, UKCA, Emark certified

This product is listed in Industrial Automation, Mining, Transport
NVIDIA® Jetson Xavier™ NX SOM 3 x NVIDIA® 64-bit Carmel (Dual-Core) processor, 1900 MHz384-Core Volta & 48-core Tensor integrated, 1100MHz6 TFOPS (FP16), 21 TOPS (INT8) computeOpenGL 4.6, OpenGL ES 3.2, and Vulkan 1.1260-Pin SO-DIMM form facor compatible with NANO/TX2 NXNVIDIA® JetPack4.5
Memory 8GB 128-bit LPDDR4, 1600MHz
Storage 16GB eMMC 5.1 flash storage, 200 MHz (HS400)1 x Accessible microSD (SDXC, UHS-I)1 x M.2 2280/3080 Key M PCIe 3.0 x4 NVMe SSD
Expansion 1 x Full size mPCIe socket (PCIe 3.0 + USB 2.0)1 x M.2 3042/3052 Key B socket (USB 3.0) with 2 x micro SIM slots
Display 1 x HDMI 2.0A/B, up to 3840 x 2160@60Hz
G-Sensor 3D accelerometer and 3D gyroscope, ST LSM6DSLTR
GbE 1-Port GbE, X-coded (ATC 3530-IP7-4C)2-Port GbE, X-coded (ATC 3530-IP7-4M)9Kbyte Jumbo frame, PTP (IEEE 1588) supportController: Intel® I210-IT
PoE (only for ATC 3530-IP7-4C) 4-Port Gbps, X-codedIEEE 802.3af/at compliant30W (4-port) power budget in totalPoE on/off and power watt monitoring
MIPI CSI-2 SerDes (only for ATC 3530-IP7-4M) Up to 4 x individual channel (1080p60/720p30 resolution)Thine SerDes solution (V-by-One® HS)Integrated with 3rd party MIPI SerDes camera (IP67 rating)
- 1080p60 CAM: CAM1-MT1080-IP7-15m
- 720p30 CAM: CAM1-MT720-IP7-15m
USB 2 x USB 3.0 (USB 3.2 Gen1), type A
- 5V@900mA each
- up to 5Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)
1 x OTG micro USB
Serial Port 1 x RS232 (Tx, Rx, CTS, RTS)1 x RS232 (Tx, Rx)1 x Console port (Tx, Rx)RS232 working voltage, ±9V, baud rate up to 115.2kb/s
DI/DO (reserved) 4-Bit input
- Source: 9~36VDC ([email protected]/[email protected])
- External: 0~33VDC pull-high, high-level, 3.3 - 33VDC; low-level, 0-2 VDC
4-Bit output
- Source: 9~36VDC (nominal 35mA@24V)
- External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)
Source or external can be selected by software (default: source type)
CAN Bus 1 x CAN 2.0A/2.0BIEC 61000-4-2 Electrostatic Discharge (ESD): ±8KV/15KV (contact/air)2.5KV isolated
GPS U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/BeidouOptional DR (dead reckoning) function, NEO-M8U/M8L
Power Supply Nominal voltage: 9~36VCranking voltage: 6V~9V (less than 20 sec)OCP & UVP (shut down once exceeding 37V)Ignition on/off control & programmable on/off delay timerOpional for remote power on/off control

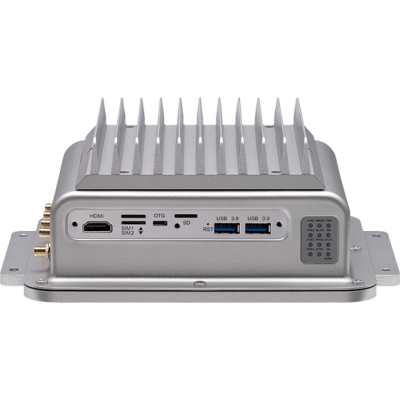

I/O Ports, Front-Plate 12 x LED indicatorsReset button, 1 x microSD slot, 1 x OTG2 x Micro SIM slots, 1 x HDMI, 2 x USB 3.0
I/O Ports, Rear-Plate 9~36VDC-in, S-coded4 x Fakra z-code & 2 x GbE, X-coded (ATC 3530-IP7-4M)4 x GbE PoE & 1 x GbE, X-coded (ATC 3530-IP7-4C)M12 multi-port (2 x RS232 & 1 x console, 1 x CAN)
I/O Ports, Side-Plate 2 x antenna holes for Wi-Fi 5/6 modules (PR-SMA ant.)2 x antenna holes for LTE/5G module (SMA ant.)1 x antenna hole for GNSS (RP-SMA ant.)
Dimensions & Weight 213mm x 167mm x 82.8mm (w/ mount bracket)2.4kg
Environment Operating temperatures: -30°C~70°C (70°C: NVIDIA® Jetson Xavier™ NX@10W, w/o PoE; 60°C: NVIDIA® Jetson Xavier™ NX@15W w/ 30W PoE)Storage temperatures: -40°C~85°CRelative humidity: 10%~95% (non-condensing)
Vibration & Shock Vibration in operating
- MIL-STD-810G, 514.6C, Procedure 3, Category 4
- IEC 60068-2-64: 2.0g@5~500 Hz
- MIL-STD-810G, 514.6E, Procedure 1, Category 24, 7.7g approx.
Shock
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications CE approval, FCC Class A, UKCA, E13 certified
Operating System NEXCOM Aided Linux (NAL)
- NV Jetpack 4.5 package
- MIPI SerDes CAM Driver
- NEXCOM custom functions (GNSS, 5GNR, 6-axis sensor, MCU control)
- V4L2
- Ubuntu 18.04 @Kernel 4.9.140
External Cable Power extension cable, 20cmM12 multi-port adapter cable, 20cm
