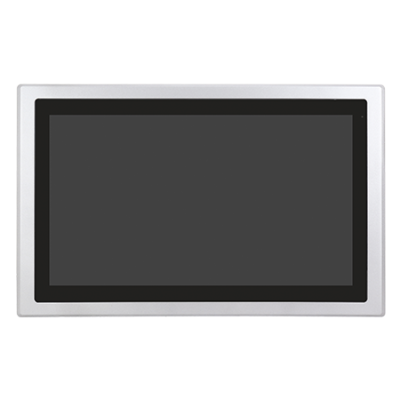

ARCHMI-918BP/R(H) 18.5" 8th Gen. Intel Fanless Industrial Compact Panel PC

In stock

SKU:

ARCHMI-918BP

Aplex ARCHMI-918BP/R(H) 18.5" 8th Gen. Intel Fanless Industrial Compact Panel PC IP66 Fanless Touchscreen

Key Features:

18.5" Industrial Compact Size Panel PC
Flat Front Panel Touch Screen with IP66 Front Bezel
Fanless Design
8th Gen. Intel Core i3/i5, CPU built-in
1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 2400MHz
DC 9~36V Wide-Ranging Power Input
Support Expansion via Full-size Mini PCIe and M.2 slots
Support TPM2.0 Hardware Security
High Brightness 1,000 nits for option

ARCHMI-918BP
18.5" HD/FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.

ARCHMI-918BR
18.5" HD/FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Aluminum chassis.

ARCHMI-918BP(H)
18.5" High brightness HD/FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.

ARCHMI-918BR(H)
18.5" High brightness HD/FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Aluminum chassis.

Enquire Now

Enquire about this product:

Name

Phone

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The 18.5" Industrial Compact Size Panel PC features a flat front panel with an IP66-rated front bezel, ensuring durability and protection against dust and water. Its fanless design ensures quiet and efficient operation, reducing maintenance needs. The panel PC is powered by an 8th Gen. Intel Core i3/i5 processor, providing reliable and powerful performance.

It includes one 260-pin SO-DIMM DDR4 slot, supporting memory expansion of up to 32GB at 2400MHz for enhanced multitasking capabilities. The device supports a wide-ranging DC power input from 9 to 36V, providing flexibility in power options. Additionally, the panel PC supports expansion through full-size Mini PCIe and M.2 slots, allowing integration of additional functionalities.

To ensure data security, the device is equipped with TPM2.0 hardware security features. For applications requiring high brightness displays, there is an option available for a 1,000 nits high brightness screen, ensuring optimal visibility in various environments.

Key Features:

18.5" Industrial Compact Size Panel PC
Flat Front Panel Touch Screen with IP66 Front Bezel
Fanless Design
8th Gen. Intel Core i3/i5, CPU built-in
1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 2400MHz
DC 9~36V Wide-Ranging Power Input
Support Expansion via Full-size Mini PCIe and M.2 slots
Support TPM2.0 Hardware Security
High Brightness 1,000 nits for option

This product is listed in Industrial Automation

Specifications

System
CPU	Onboard 8th Gen Intel Corei3-8145UE Processor(2C/4T,2.2GHz)/ Intel Corei5-8365UE Processor(4C/8T,1.6GHz)
System Chipset	SoC
Memory	1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz
TPM	TPM 2.0
I/O Port
USB	4 x USB 3.0 type A
	1 x DB-9 Connector, Including:
Serial	* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper(COM1)
	* 1 x RS-232(Tx, Rx)/ 422/485(COM2) by Y Cable
Audio	1 x Audio Line Out
DP	1 x DP Port
LAN	2 x GbE LAN RJ-45
Power	1 x 3-pin Terminal Block Connector1 x 2-pin Power Switch Connector
	VESA Stand
	4G LTE
	WiFi 4/5/6+ BT
	4 x USB 2.0 type A (TB-528U4)
	4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1)
	2 x COM (RS-232) (TB-528C2)
	1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)
Option	1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1)
	2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)
	2 x COM (RS-422/485, isolated) (TB-528C2I)
	2 x CAN (TB-528CAN2)
	1 x LAN + 2 x USB 2.0 type A (TB-528E1U2)
	1 x LAN(45W isolated PoE PD) + 2 x USB 2.0 type A (TB528E1U2UPOE)*
	Backup Battery 21W/10.8V/1.95Ah(3S1P)
	(TB-528 Series or backup battery only be in either one)
Storage Space
Storage	1 x M.2 M Key slot(Support PCIe/SATA; 2242/2280, Default 2242)
Expansion
Onboard expansion bus
	1 x Mini-PCIe slot (full size)
	1 x Nano SIM Card Holder

Display	Standard		Optional High Brightness
Display Type	18.5" TFT-LCD		18.5" TFT-LCD
Max. Resolution	default	optional	default	optional
	1366 x 768	1920 x 1080	1366 x 768	1920 x 1080
Max. Color	16.7M	16.7M	16.7M	16.7M
Luminance (cd/m2)	300	350	1000	1000
View Angle	170(H)/160(V)	178(H)/178(V)	170(H)/160(V)	178(H)/178(V)
Contrast	1000:1	1000:1	1000:1	1000:1
Backlight Lifetime	50,000 hrs	50,000 hrs	50,000 hrs	40,000 hrs

Touch Screen
Type	Resistive Touch (for BR Model) Projected Capacitive Touch (for BP Model)
Interface	USB
Light Transmission(%)	Resistive Touch: 80% / Projected Capacitive Touch: 90%
Power
Power Input	DC 9~36V
Power Consumption	ARCHMI-918BP: 70W (MAX)
Mechanical
Construction	Aluminum Die-casting Chassis
Mounting	Panel Mount, VESA 100 x 100
Dimensions (WxHxD)	499.6 x 314.6 x 65.4 mm
IP Rating	IP66 Compliant Front Bezel
Net Weight	6.7 kg
Environmental
Operating Temperature	0~50 ̊C / -20~60 ̊C (option)
Storage Temperature	-30~70 ̊C
Humidity	10 to 95%@ 40 ̊C, non-condensing
Certificate	CE / FCC, Class A
Operating System Support	Windows 10 IoT, Windows 11
ARCHMI-918BP	18.5" HD/FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
ARCHMI-918BR	18.5" HD/FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Aluminum chassis.
ARCHMI-918BP(H)	18.5" High brightness HD/FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
ARCHMI-918BR(H)	18.5" Hight brightness HD/FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Aluminum chassis.
