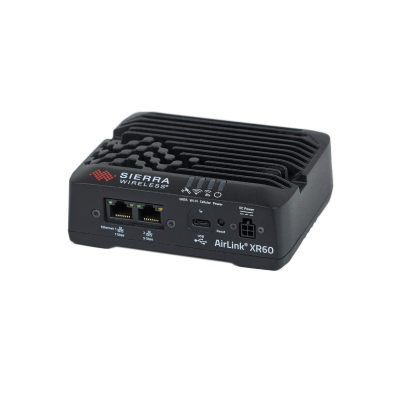

AirLink XR60 Rugged 5G Router
AirLink® XR60, the world’s smallest rugged 5G router is compact yet powerful.
Key Features:
- 4x4 5G + LTE Cat-20
- 2x2 Wi-Fi 6 (optional)
- Dual-Band GNSS
- Single Serial / Single
- Ethernet (1 Gbps) or Dual Ethernet (1 Gbps + 5 Gbps)
- IP64 and MIL-STD-810H Rated
- Powered by AirLink OS and AirLink Complete
The ultra-compact and highly ruggedized AirLink® XR60 delivers high-performance 5G and Wi-Fi 6 connectivity to space-limited and harsh environments – from tight industrial enclosures to fast-moving vehicles. With advanced networking capabilities, private network support, and edge computing capabilities, the XR60 future-proofs your connectivity and accelerates your digital transformation.
The AirLink XR60 is fully integrated with AirLink Complete – a comprehensive service package that includes remote device and security management, expert technical support, and an extended hardware warranty. You can also opt for AirLink Premium – an advanced service package that includes all the benefits of AirLink Complete, enhanced with Advanced Mobility Reporting and Advance Replacement.
High-performance and reliable connectivity in fixed and mobile mission-critical applications:
- Critical Infrastructure
- Video Surveillance
- Smart Cities
- Manufacturing
- Public Safety Vehicles
- Fixed Wireless Access
- Fleet Vehicles
|
GLOBAL |
|
|
CELLULAR |
|
|
Variant |
Global |
|
Technology |
5G |
|
Peak Downlink (Theoretical) |
2800 Mbps |
|
Peak Uplink (Theoretical) |
300 Mbps |
|
Category |
5G |
|
Region |
Global |
|
Radio |
EM9291 |
|
MIMO |
4x4 |
|
RF Connectors |
SMA |
|
SIM |
Dual SIM (Nano-4FF) |
|
FREQUENCY BANDS |
|||
|
5G |
4G LTE |
3G (HSPA+) |
|
|
1 |
n1 |
B1 |
B1 |
|
2 |
n2 |
B2 |
B2 |
|
3 |
n3 |
B3 |
|
|
4 |
B4 |
B4 |
|
|
5 |
n5 |
B5 |
B5 |
|
7 |
n7 |
B7 |
|
|
8 |
n8 |
B8 |
B8 |
|
12 |
n12 |
B12 |
|
|
13 |
n13 |
B13 |
|
|
14 |
n14 |
B14 |
|
|
17 |
B17 |
||
|
18 |
n18 |
B18 |
|
|
19 |
B19 |
B19 |
|
|
20 |
n20 |
B20 |
|
|
25 |
n25 |
B25 |
|
|
26 |
n26 |
B26 |
|
|
28 |
n28 |
B28 |
|
|
29 |
n29* |
B29** |
|
|
30 |
n30 |
B30** |
|
|
32 |
|
B32** |
|
|
34 |
|
B34 |
|
|
38 |
n38 |
B38 |
|
|
39 |
|
B39 |
|
|
40 |
n40 |
B40 |
|
|
41 |
n41 |
B41 |
|
|
42 |
|
B42 |
|
|
43 |
|
B43 |
|
|
46 |
|
B46** |
|
|
48 |
n48 |
B48 |
|
|
66 |
n66 |
B66 |
|
|
70 |
n70 |
|
|
|
71 |
n71 |
B71 |
|
|
75 |
n75* |
|
|
|
76 |
n76* |
|
|
|
77 |
n77 |
|
|
|
78 |
n78 |
|
|
|
79 |
n79 |
|
|
* SA downlink only
** Downlink only
|
WIRELESS CERTIFICATION |
|
|
Regulatory |
FCC, IC/ISED, PTCRB |
|
Carrier |
AT&T, FirstNet® 4G, T-Mobile, Verizon, CBRS. C-Band |
|
Public Safety |
FirstNet® 4G (Pending) |
|
Part Numbers |
1105099 XR60 Dual Ethernet (1 Gbps + 5 Gbps) |
|
WI-FI |
|
|
Wi-Fi Standard |
Wi-Fi 6 |
|
Access Point |
Dual (2.4 & 5 GHz) |
|
Client (Depot/WAN) |
Yes |
|
Client & AP |
Yes |
|
Peak Throughput (Theoretical) |
1200 Mbps |
|
MIMO |
Single 2x2 |
|
Security |
WPA2/3 Personal WPA2/3 Transitional WPA2 Enterprise (Client only) |
|
Clients |
Up to 32 maximum |
|
SSID |
3 |
|
Output Power |
21 dBm per chain |
|
Frequency |
2.4/5 GHz |
|
RF Connectors |
SMA (Reverse Polarity) |
|
ENVIRONMENTAL |
|
|
Operating Temperature |
-40°C to +70°C / -40°F to +158°F -30°C to +65°C / -22°F to +149°F (Wi-Fi variant) |
|
Storage Temperature |
-40°C to +85°C / -40°F to +185°F |
|
Humidity |
95% RH @ 60°C |
|
Military Specification |
MIL-STD-810H (Shock, Vibration, Thermal Shock, Humidity) |
|
IP Rating |
IP64 |
|
INDUSTRY CERTIFICATIONS |
|
|
Safety |
IECEE Certification Bodies Scheme (CB Scheme) |
|
Vehicle Usage |
E-Mark (UN ECE Regulation 10.05), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical) |
|
Environmental Directives |
RoHS2, REACH, WEEE, Prop 65 |
|
Hazardous Environments |
Class 1 Div 2 – Ambient temperatures of -30°C to +60°C IECEx & ATEX |
|
Rail Usage |
EN50155/EN45545 (Rolling Stock) |
|
POWER |
|
|
Input Voltage |
7 to 36 VDC Redundant power input via USB-C (45W) |
|
Power Consumption |
Idle Power: 3.5W (290 mA @ 12VDC) - Serial/Ethernet variant Standby Mode Power: 55 mW (4.6 mA @ 12 VDC) Triggered on low voltage, I/O or periodic timer |
|
Power Modes |
7 to 36 VDC: Low voltage disconnect to prevent battery drain Built-in protection against voltage transients including 5VDC engine cranking and +200 VDC load dump Ignition Sense with time delay shutdown Configurable features and ports to optimize power consumption Can switch to redundant power input via USB-C (45W) |
|
SECURITY |
|
|
AAA |
Wi-Fi 802.1x/Radius authentication |
|
Firewall |
Stateful firewall with port forwarding, DMZ |
|
WLAN Encryption |
WPA2/3 Personal WPA2/3 Transitional WPA2 Enterprise (Client only) |
|
Firmware Update |
Secure Firmware Update |
|
NETWORK AND ROUTING |
|
|
Throughput |
800 Mbps Firewall TCP throughput |
|
Features |
Semtech Cognitive Wireless IPv4 and IPv6 Routing Network Address Translation (NAT) Port Forwarding DHCP Server IP Passthrough LAN Segmentation IPv4 Passthrough and IPv6 Prefix Extension WAN/LAN Connection Policy Management Policy-Based Routing Configurable MTU size Static Routing WAN Ethernet |
|
QoS |
Application/Traffic Priority Queuing |
|
WAN Monitors |
Connection Failure Recovery |
|
LAN (ETHERNET/USB) |
|
|
USB to Ethernet |
|
|
VPN |
|
|
Throughput |
175 Mbps IPSec VPN TCP throughput |
|
Features |
Integrated with ACM VPN Server IPsec protocol with IKEv1/IKEv2 FIPS 140-2 Level 1 compliant |
|
Encryption |
AES128/AES192/AES256 |
|
Hashing |
SHA256/SHA384/SHA512 |
|
Key Exchange |
DHGroup14/15/16/17/18/19/20/21 |
|
LAN to LAN and Host to LAN Up to 10 concurrent tunnels per link MOBIKE protocol IP compression Full/Split Tunnel Dead Peer Detection (DPD) |
|
|
EDGE COMPUTING |
|
|
|
Support for Edge Compute Docker Containerized Applications (Beta) licensed via ALMS |
|
RAM¹,² |
1.2 GB |
|
Storage (Flash)¹ |
1.7 GB |
|
CPU |
Quad Core Arm A53 64-bit |
|
AIRLINK COMPLETE (1 Year Included With Router Purchase) |
|
|
Support |
24/7 technical support* |
|
Hardware Warranty |
1-year standard hardware warranty Extended hardware warranty up to 5 years with current subscription** |
|
Device Management |
AirLink Management Service (ALMS)* |
|
Software Updates |
Unrestricted critical firmware updates |
|
AIRLINK PREMIUM (Optional Upgrade) Includes All Airlink Complete Features* and Adds: |
|
|
Advanced Mobility Reporting |
Coverage and fleet reporting*** |
|
Advance Replacement |
Same-day shipping for in-warranty router replacements*** |
|
RELIABILITY |
|
|
MTBF |
1105099 XR60 Dual Ethernet: 264010 hours (30.13 years) |
|
ACCESSORIES |
|
|
In The Box |
XR60, DC Power Cable, Quick Start Guide, AirLink Complete |
|
Other Accessories |
6001503 AC Adapter |
|
DIMENSIONS |
|
|
AirLink XR60 |
Size: 118mm x 39mm x 98mm (108 including SMA |
2. Depends on other enabled features
*With current AirLink Complete subscription
**Full warranty terms are available at www.sierrawireless.com/end-user-warranty
***With current AirLink Premium subscription
