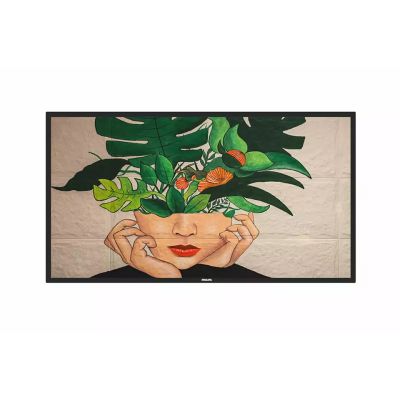

86BDL4550D 86" 24/7 Android Display
86BDL4550D 86" UHD Easy-Setup 24/7 FailOver SmartPower Android
Key Features:
- Expand your viewing experience
- ADS wide-view panel display
- Care about you, your business and your audience
- SmartPower for energy saving
- Keep your content up and running with FailOver
- Ensure your content is running with automatic screenshots
- Maximizing the impact of your message
- CMND: Take control of your displays
- Manage settings of multiple displays with CMND & Control
- Create and update content with CMND & Create
- Connect and control your content via the cloud
- Innovative solutions for any signage application
- Save and play content with internal memory
- Android SoC processor. Native and web apps
- Integrated dual-band WiFi
The 86BDL4550D is a 86 inch UHD easy-setup 24/7 display with internal memory to ensure content is always displayed even with a network outage. Powered by Android version 8.0 for deployment of Android and web apps directly to the display. Use Proof of Play to setup automatic screenshots checking your content is always up and running correctly.
Included with HTML5 Chromium based SmartBrowser allows users to stream content to the device along with various other controls. The failover feature ensures an output is always displayed even in the event of the primary source disconnecting. CMND & Control provides network management through a LAN connection, giving both monitoring capabilites and input control. Also equipped with CMND & Create for simple drag-and-drop content publishing.
Key Features:
- Expand your viewing experience
- ADS wide-view panel display
- Care about you, your business and your audience
- SmartPower for energy saving
- Keep your content up and running with FailOver
- Ensure your content is running with automatic screenshots
- Maximizing the impact of your message
- CMND: Take control of your displays
- Manage settings of multiple displays with CMND & Control
- Create and update content with CMND & Create
- Connect and control your content via the cloud
- Innovative solutions for any signage application
- Save and play content with internal memory
- Android SoC processor. Native and web apps
- Integrated dual-band WiFi
Picture/Display
• Diagonal screen size: 85.6 inch / 217.4 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @120Hz
• Brightness: 500 cd/m²
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Aspect ratio: 16:9
• Response time (typical): 8 ms
• Pixel pitch: 0.4935 x 0.4935 mm
• Display colors: 1.07 Billion
• Viewing angle (H / V): 178 / 178 degree
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Motion compens. deinterlacing, 3D
MA deinterlacing, Dynamic contrast enhancement,
Progressive scan
• Operating system: Android 8.0
• Panel technology: IPS
Connectivity
• Video input: HDMI 2.0 (x3), Display Port1.2 (x1),
DVI-I (x 1), USB 2.0 (x2)
• Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)
• Audio input: 3.5 mm jack
• Audio output: 3.5mm jack
• Other connections: OPS
• External control: RJ45, RS232C (in/out) 2.5 mm
jack, IR (in/out) 3.5 mm jack
• WiFi: dual antenna 2,4Ghz and 5Ghz
Supported Display Resolution
• Computer formats
1920 x 1080 60Hz
1280 x 1024 60Hz
1024 x 768 60Hz
1280 x 720 60Hz
1440 x 900 60 Hz
1600 x 900 60Hz
1680 x 1050 60Hz
3840 x 2160 30, 60Hz
640 x 480 60Hz
800 x 600 60Hz
• Video formats
1080p 50, 60Hz
1080i 50, 60Hz
2160p 24, 30, 60Hz
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50,60 Hz
Dimensions
• Set dimensions (W x H x D):
1929.0 x 1100 x 69.5(D@Wall mount) /
91.8(D@Handle) mm
• Set dimensions in inch (W x H x D):
75.94 x 43.31 x 2.74(D@Wall mount) /
3.61(D@Handle) inch
• Bezel width: 15.5 mm (Even bezel)
• Product weight (lb): 111.11 lb
• Product weight: 50.4 kg
• Wall Mount: 600(H)x400(V) mm, M8
Convenience
• Placement: Landscape (24/7), Portrait (24/7)
• Tiled Matrix: Up to 10 x 15
• Keyboard control: Hidden, Lockable
• Signal loop through: IR Loopthrough, DisplayPort,
HDMI, RS232
• Network controllable: RS232
• Energy saving functions: Smart Power
• Screen saving functions: Pixel Shift, Low Bright
• WiFi protocol: a b g n, 802.1x
Power
• Standby power consumption: <0.5 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
• Consumption (Typical): 410 W
• Consumption (Max): 600 W
• Energy Label Class: G
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 - 80% RH (No
condensation)
• Humidity range (storage) [RH]: 5 - 95% RH (No
condensation)
Sound
• Built-in speakers: 2 x 10W RMS
Accessories
• Included accessories: Quick start guide, RS232
cable, AC Power Cord, IR sensor cable (1.8M),
Remote Control & AAA Batteries
• Included Accessories: RS232 daisy-chain cable, AC
Switch Cover, Philips logo (x1), Screws, USB
Cover (x1)
Multimedia Applications
• USB Playback Audio: AAC, HEAAC, MPEG
• USB Playback Picture: BMP, JPEG, PNG
• USB Playback Video: MPEG, H.263, H.264, H.265
Miscellaneous
• On-Screen Display Languages: English, French,
German, Spanish, Polish, Turkish, Russian, Italian,
Simplified Chinese, Traditional Chinese, Arabic,
Japanese, Danish, Dutch, Finnish, Norwegian,
Portuguese, Swedish
• Regulatory approvals: CE, RoHS, BSMI, CB, CCC,
CU, EMF, ETL, FCC, Class A, J-Moss, PSB, PSE,
VCCI
• Warranty: 3 year warranty
Internal Player
• CPU: 2 x A53 + 2 x A73
• GPU: ARM Mali G51
• Memory: 3GB DDR
• Storage: 32 GB eMMc
