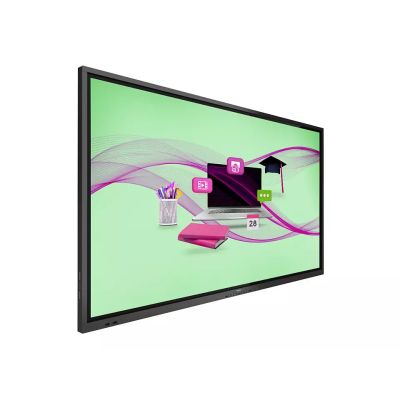

86BDL4052E 86" UHD 18/7 Multi-Touch Android Display
86BDL4052E 86" UHD 18/7 Multi-Touch Wireless Infrared OPS Android Display
Key Features:
- Interactive and collaborative
- Operate, monitor and maintain with CMND & Control
- Multi-touch technology capable of 20 touchpoints
- Advanced IR touch with smaller, shallower bezels
- Smart and powerful
- OPS slot allows for PC embedding without cabling
- Whiteboard mode built-in
- Android: Run your own app or choose your favorite app to run
- 0-gap touch frame
- Anti-glare toughened glass 7 MOHS
86BDL4052E is a 86 inch UHD 18/7 display powered by Android for use with web apps and content delivery. Advanced infrared provides up to 20 touchpoints for a smooth experience alongside wireless screen sharing allowing casting from any device on the same Wi-Fi network. Included with whiteboard mode for multiple users to interact with the display and an OPS slot for additional computing power if required.
Key Features:
- Interactive and collaborative
- Operate, monitor and maintain with CMND & Control
- Multi-touch technology capable of 20 touchpoints
- Advanced IR touch with smaller, shallower bezels
- Smart and powerful
- OPS slot allows for PC embedding without cabling
- Whiteboard mode built-in
- Android: Run your own app or choose your favorite app to run
- 0-gap touch frame
- Anti-glare toughened glass 7 MOHS
Picture/Display
• Diagonal screen size: 85.6 inch / 217.4 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840x 2160 @ 60Hz
• Brightness: 350 cd/m²
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.4935x0.4935 mm
• Display colors: 1.07 billion
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Motion compens. deinterlacing,
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement
• Panel technology: VA
• Contrast ratio (typical): 4000:1
• Operating system: Android 10
• OS UI resolution: 3840 x 2160 @ 60 Hz
Supported Display Resolution
• Computer formats
640 x 350 70Hz
640 x 480 60, 67, 72, 75Hz
720 x 400 70Hz
800 x 600 56, 60, 72, 75Hz
832 x 624 75Hz
848 x 480 60Hz
960x720 75Hz
1024x768 60,70Hz
1152 x 864 60, 70, 75Hz
1152 x 900 66Hz
1280 x 720 60,70Hz
1280 x 768 60Hz, 75Hz
1280 x 800 60,75Hz
1280 x 960 60Hz
1280x1024 60,67,75Hz
1360 x 768 60Hz
1366 x 768 60Hz
1400 x 1050 60, 75Hz
1440 x 900 60Hz
1600 x 900 60Hz
1600 x 1200 60Hz
1680 x 1050 60Hz
1920 x 1080 60Hz
1920 x 1200 60Hz
3840 x 2160 24,25,30,60Hz
• Video formats
480i 60Hz
480p 60Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
2160p 50, 60Hz
Connectivity
• Video input: DVI-D (x1), HDMI 2.0 (x3), USB 2.0
(x3), USB 3.0 (x3), USB-C (up to 65W)
• Audio input: 3.5 mm mini jack (x1)
• Video output: HDMI 2.0 (x1)
• Audio output: 3.5 mm Mini Jack (x1)
• External control: IR (in/out) 3.5 mm jack, RJ45,
RS232C (in/out) 2.5 mm jack
• Other connections: OPS, micro SD, USB-B (x3)
Convenience
• Placement: Landscape (18/7)
• Screen saving functions: Pixel Shift, Low Brightness
• Signal loop through: RS232, IR Loopthrough
• Ease of installation: AC Out, Smart Insert
• Network controllable: RS232, RJ45
• Keyboard control: Lockable
• Remote control signal: Lockable
• Other convenience: Carrying handles
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 ~ 80%
(without condensation)
• Humidity range (storage) [RH]: 5 ~ 95% (without
condensation)
Power
• Consumption (Typical): 450 W
• Consumption (Max): 670 W
• Standby power consumption: <0.5 W
• Mains power: 100 - 240V~, 50 - 60Hz, 7.5A
• Power Saving Features: Smart Power
• Energy Label Class: G
Sound
• Built-in speakers: 2 x15 W
Accessories
• Optional accessories: Interact dongles
• Included Accessories: AC Switch Cover, Cleaning
cloth (x1), DVI - I Cable (1.8m) (x1), HDMI Cable
(3m) (x1), IR sensor cable (1.8 m) (x1), Philips logo
(x1), Quick start guide (x1), Remote control &
AAA batteries, RS232 daisy chain cable (x1), Touch
Pen (x2), USB A to B cable (3m) (x1), RS232 cable,
AC Power Cord, Cable clip (x3), USB cover and
screws
Miscellaneous
• On-Screen Display Languages: Arabic, Dutch,
Danish, English, French, Finnish, German, Italian,
Japanese, Norwegian, Polish, Portuguese, Russian,
Spanish, Swedish, Simplified Chinese, Turkish,
Traditional Chinese
• Regulatory approvals: CE, FCC, Class A, RoHS,
CB, EAC, EMF, ETL
• Warranty: 3 year warranty
Multimedia Applications
• USB Playback Video: H.263, H.264, H.265, MPEG1/
2, VP8, VP9, MPEG4
• USB Playback Picture: BMP, JPEG, PNG
• USB Playback Audio: AAC, MPEG, HEAAC
Interactivity
• Multi-touch technology: 0-gap Infrared touch
• Touch points: 20 simultaneous touch points
• Plug and play: HID compliant
• Protection glass: Anti-Glare, Tempered safety glass
7MOHS, Blue light filter
Weight
• Product with packaging (kg): 90.6 kg
• Product with packaging (lb): 199.74 lb
• Product without stand (kg): 74.49 kg
• Product without stand (lb): 164.22 lb
Internal Player
• CPU: MTK 9970A
• Memory: 4GB RAM
• Storage: 32 GB eMMc
• Wifi: 2G/5G/6G 2T2R
Dimensions
• Smart Insert mount: 100x100mm, 6xM4L6
• Set dimensions (W x H x D):
1960.8 x 1145.7 x 101.3mm(D_Max)/
79.0mm(D_Wallmount) mm
• Set dimensions in inch (W x H x D):
77.19 x 45.11 x 3.98(D_Max)/
3.11(D_Wallmount) inch
• Bezel width: 17.8mm(T/R/L) x 31.7mm(B)
• Wall Mount: 600 x 400 mm, M8
• Weight: 600 x 400 mm, M8 kg
