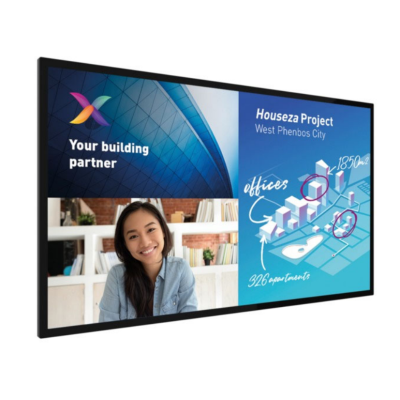

65BDL6051C 65" UHD 18/7 Capacitive Touch Android Display
65BDL6051C 65" UHD 18/7 Multi-Touch Android Wireless OPS
Key Features:
- Interactive and collaborative
- Wireless screen sharing & advanced collaboration
- HID Capacitive Touch with USB Plug & Play
- Operate, monitor and maintain with CMND & Control
- Smart and powerful
- Anti-glare toughened glass
- Android SoC processor. Native and web apps
- Install and use your preferred apps and features
- Whiteboard mode built-in
- Fast and easy video conferencing
- OPS slot allows for PC embedding without cabling
- Crestron Connected certified
The 65BDL6051C is a 65 inch UHD 18/7 display powered by Android for use with web apps and content delivery. Wireless screen sharing allows up to four feeds to be displayed from any device on the same Wi-Fi network. Included with whiteboard mode for multiple users to interact with the display and an OPS slot for additional computing power if required. 'Creston Connected' certified for full system control alongside Philips CMND & Control for network management.
Key Features:
- Interactive and collaborative
- Wireless screen sharing & advanced collaboration
- HID Capacitive Touch with USB Plug & Play
- Operate, monitor and maintain with CMND & Control
- Smart and powerful
- Anti-glare toughened glass
- Android SoC processor. Native and web apps
- Install and use your preferred apps and features
- Whiteboard mode built-in
- Fast and easy video conferencing
- OPS slot allows for PC embedding without cabling
- Crestron Connected certified
Picture/Display
• Diagonal screen size: 64.5 inch / 163.83 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840x 2160 @ 60Hz
• Brightness: 350 cd/m²
• Contrast ratio (typical): 1300:1
• Dynamic contrast ratio: 500,000:1
• Aspect ratio: 16:9
• Response time (typical): 9 ms
• Pixel pitch: 0.372(H) x 0.372 (V) mm
• Display colors: 1.07 billion
• Viewing angle (H / V): 178 / 178 degree
• Picture enhancement: 3/2 - 2/2 motion pull down,
Motion compens. deinterlacing, 3D MA
deinterlacing, Dynamic contrast enhancement,
Progressive scan
• Operating system: Android 9
Connectivity
• Video input: HDMI 2.0 (x4), Display Port1.2 (x1),
DVI-I (x 1), USB 2.0 (x2), USB 3.0 (x2), USB-C
• Video output: DisplayPort 1.2 (x1), DVI - D (x1),
HDMI 2.0 (x2)
• Audio input: 3.5 mm jack
• Audio output: 3.5mm Jack (x2)
• Other connections: OPS, micro SD
• External control: RJ45, RS232C (in/out) 2.5 mm
jack, IR (in/out) 3.5 mm jack
Supported Display Resolution
• Computer formats
1024x768 60,70Hz
1152 x 864 60, 70, 75Hz
1152 x 900 66Hz
1280 x 720 60,70Hz
1280 x 768 60Hz, 75Hz
1280 x 800 60,75Hz
1280 x 960 60Hz
1280x1024 60,67,75Hz
1360 x 768 60Hz
1366 x 768 60Hz
1400 x 1050 60, 75Hz
1440 x 1050 60Hz
1440 x 900 60, 75Hz
1600 x 1200 60Hz
1600 x 900 60Hz
1680 x 1050 60Hz
1920 x 1080 60Hz
1920 x 1200 60Hz
640 x 350 70Hz
640 x 480 60, 67, 72, 75Hz
720 x 400 70Hz
800 x 600 56, 60, 72, 75Hz
832 x 624 75Hz
848 x 480 60Hz
960x720 75Hz
• UHD Formats: 3840 x 2160, 24, 25, 30, 60 Hz,
3840 x 2160, 50 Hz
• Video formats
1080i 50, 60Hz
1080p 50, 60Hz
480p 60Hz
4K x 2K 50,60Hz
576p 50Hz
720p 50, 60Hz
Dimensions
• Set dimensions (W x H x D):
1485.1 x 860.10 x 86.2mm(D@wall mount)/
(97.4mm(D@speaker Cover) mm
• Set dimensions in inch (W x H x D):
58.47 x 33.86 x 3.39(D@wall mount)/
3.83(D@speaker Cover) inch
• Bezel width: 1.50 mm(even)
• Product weight (lb): 100.97 lb
• Product weight: 45.8 kg
• Wall Mount: 400(H)x400(V) mm, M8
• Smart Insert mount: 6*M4*L6, 100mm pitch, Max.
Size 150mm x 300mm
Convenience
• Placement: Landscape, Landscape (18/7), Portrait
(12/7)
• Keyboard control: Hidden, Lockable
• Signal loop through: RS232, IR Loopthrough
• Network controllable: RJ45, RS232
• Energy saving functions: Smart Power
• Screen saving functions: Pixel Shift, Low Bright
• Ease of installation: Smart Insert
• DPMS power saving system
Power
• Standby power consumption: <0.5 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
• Consumption (Typical): 190 W
• Consumption (Max): 320 W
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Relative humidity: 20 ~ 80%(operating),5
~95%(storage) %
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
Sound
• Built-in speakers: 2 x 20W RMS
Accessories
• Included Accessories: Philips logo (x1), Cleaning
cloth (x1), DVI - I Cable (1.8m) (x1), HDMI Cable
(3m) (x1), IR sensor cable (1.8 m) (x1), Power
cable (x3), RS232 Daisy chain cable (x1), Touch
Pen (x2), USB A to B cable (3m) (x1), USB Cover
(x1), AAA batteries (x1), Quick start guide (x1),
Remote control (x1), RS232 cable (3 m) (x1)
Multimedia Applications
• USB Playback Audio: AAC, M4A, MP3, WMA
• USB Playback Picture: BMP, JPEG, JPG, PNG
• USB Playback Video: ASF, AVI, DAT, FLV, MKV,
MP4, MPEG, MPG, TS, VOB, WEBM, WMV
Miscellaneous
• On-Screen Display Languages: English, French,
German, Spanish, Polish, Turkish, Russian, Italian,
Simplified Chinese, Traditional Chinese, Arabic,
Japanese, Danish, Dutch, Finnish, Norwegian,
Portuguese, Swedish
• Regulatory approvals: CE, RoHS, VCCI, CB, CU,
EMF, EPA, ETL, FCC, Class A
• Warranty: 3 year warranty
Internal Player
• CPU: MTK5680
• Storage: 32 GB eMMc
• Wifi: AP(WC0SR2511-88112BU),
STA(WCT5GM2511MT7668AU)
• Micro SD Card: Support to 1TB
• RAM: DDR4 4GB
Multi-touch Interactivity
• Touch points: 10 simultaneous touch point
