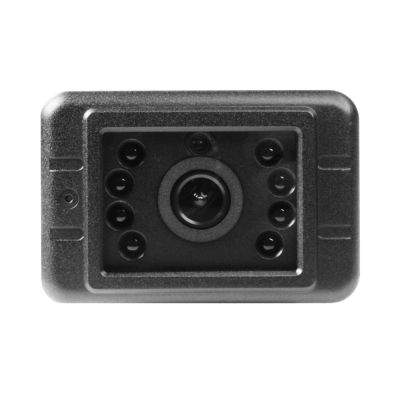

GPCR-675A1GN 5MP H.265/4 POE IP67 IP Vehicle Camera

In stock
SKU:
GPCR-675A1GN
Enquire Now

Please fill in your details below, we will get back to you as soon as possible

The GPCR-675A1GN is a PoE powered and IP67 protected IP camera that operates within a wide temperature range of -20℃~ + 70℃.

Features

  • H.265, H.264, Motion JPEG
  • Viewing Angle 134.5°(D) x61.5°(V) x 113.8°(H)
  • Primary up to 30fps @ 2592x1944
  • 10/100BaseT Ethernet auto-sensing
  • PoE powered
  • Operating Temperature -20℃~ + 70℃
  • Power Consumption 2.1W
  • IP67 rated
  • Colour, black & white

Camera

  • Lens
    • 2.8mm (Viewing Angle 134.5°(D) x61.5°(V) x 113.8°(H))
  • Image Sensor
    • Diagonal 6.52 mm (Type 1 / 2.8”) CMOS active pixel type solid-state image sensor with a square pixel array
  • Number of Effective Pixels
    • 5.14 M effective pixels
  • Min. Illumination
    • Color Mode: 0.1 Lux
  • Scanning Mode
    • Progressive Scan

Network

  • Video Compression
    • H.265, H.264, Motion JPEG
  • Video Resolution
    • 30 FPS(5M-16:19) : 2592x1944, 1920x1080, 1280x1024, 1280x720, 704x480, 640x480, 320x240
  • Frame rate
    • Primary up to 30fps @ 2592x1944
  • Video Streaming
    • Motion JPEG and H.264/265 Triple Streaming (Simultaneously)
    • Additional JPEG streaming (total quadruple streaming)
    • Independently Controllable frame rate and bandwidth
  • Time Stamp
    • Supported (Date/Time Only) in primary stream
  • Image setting
    • Compression levels: 6 level Low Compression, Highest, High, Normal, Low, Lowest
    • Colour: colour, black & white
  • LAN interface
    • 10/100BaseT Ethernet auto-sensing
  • Built-in Motion detections
    • Up to 4 zones
    • Motion Sensitivity : 0 ~ 100 : 100 is hypersensitive
  • Simultaneous clients
    • Live-cast for up to 16 clients
  • Web browsing
    • Video access from a Web browser
  • Developer support
    • Provides HTTP CGI API, ActiveX control development kit
  • Supported protocols
    • HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP & etc

Operation Environments

  • Operating Temperature
    • -20℃~ + 70℃
  • IP Rate
    • IP67
  • Power
    • PoE
  • Power Consumption
    • 2.1W
We build to order
