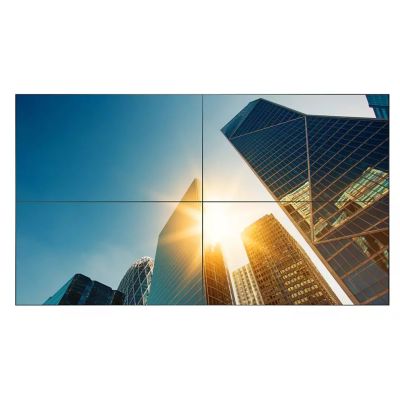

55BDL4107X 55" FHD IPS 24/7 Video Wall Display
55BDL4107X 55" FHD 24/7 Video-Wall 0.88mm-Bezel OPS
Key Features:
- Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
- Cost-effective system solution
- FailOver ensures content is always playing
- Brilliant images. Endless possibilities.
- Full HD monitors. Brilliant images. Clear contrast
- IPS panel: rich color consistency from every angle
- Ultra-narrow bezels. For distraction-free images
- Powerful system solution
- Energy-saving automatic backlight control
- OPS slot allows for PC embedding without cabling
- Tiling mode. Create tiled 4K videowalls of any size
The 55BDL4107X is a 55" FHD 24/7 video wall display designed with an ultra-narrow bezel for use in tiled screen setups. Equipped with CMND & Control for network management along with Pure Colour Pro for better visual calibration.
Key Features:
- Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
- Cost-effective system solution
- FailOver ensures content is always playing
- Brilliant images. Endless possibilities.
- Full HD monitors. Brilliant images. Clear contrast
- IPS panel: rich color consistency from every angle
- Ultra-narrow bezels. For distraction-free images
- Powerful system solution
- Energy-saving automatic backlight control
- OPS slot allows for PC embedding without cabling
- Tiling mode. Create tiled 4K videowalls of any size
Picture/Display
• Diagonal screen size: 54.6 inch / 138.7 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 700 cd/m²
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.63 x 0.63 mm
• Display colors: 1.07 B
• Contrast ratio (typical): 1100:1
• Haze: 28 %
Supported Display Resolution
• Computer formats
640 x 480 60, 72, 75Hz
720 x 400 70Hz
800 x 600 60, 75Hz
1024 x 768 60, 75Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 960 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
• Video formats
720p 50, 60Hz
1080i 25, 30Hz
1080p 50, 60Hz
2160P 50 60Hz ((HDMI/OPS/DP)
Connectivity
• Video input: DVI-D (x1), VGA (Analog D-Sub) (x1),
Display Port1.3 (x1), HDMI 2.0 (x2)
• Audio input: 3.5 mm mini jack (x1)
• Video output: DisplayPort 1.3 (x1)
• Audio output: 3.5 mm Mini Jack (x1)
• External control: IR (in) 3.5 mm jack, LAN RJ45 (x2),
Signal loopthrough RJ45(x2)
• Other connections: OPS, USB 2.0 (x1), Thermal
sensor
Convenience
• Placement: Landscape (24/7), Portrait (24/7)
• Tiled Matrix: Up to 15 x 15
• Screen saving functions: Pixel Shift, Low Bright
• Signal loop through: DisplayPort, RJ45
• Ease of installation: Carrying Handles, Smart Insert
• Energy saving functions: Smart Power
• Network controllable: LAN (RJ45)
Dimensions
• Smart Insert mount: 100mm x 100mm, 6xM4xL6
• Set dimensions (W x H x D): 1212.2 x 683 x 97.7
mm(D@WallMount)/98.9 mm(D@Handle) mm
• Set dimensions in inch (W x H x D):
47.72 x 26.89 x 3.85 (D@WallMount)/3.89
(D@Handle) inch
• Bezel width: 0.88 mm + 0.88 mm
• Wall Mount: 400mm x 400mm, M6
• Product weight: 25.33 kg
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 - 80% (without
condensation)
• Humidity range (storage) [RH]: 5 - 95% (without
condensation)
Power
• Consumption (Typical): 190 W
• Consumption (Max): 370 W
• Consumption (On mode): 150 W
• Standby power consumption: 0.5 W
• Energy Label Class: G
Sound
• Built-in speakers: 2 x 10W (RMS)
Accessories
• Included Accessories: AC Switch Cover, Gap pad x3,
IR sensor cable (1.8 m) (x1), Quick start guide (x1),
Remote control & AAA batteries, RJ45 / RS232
converter, Wire Clamper (x3), Power cord, DP
cable (x1), RJ45 cable (x1), Edge alignment pin (x2),
Kit-1 (x1), Kit-2 (x2)
Miscellaneous
• On-Screen Display Languages: Arabic, English,
French, German, Italian, Japanese, Polish, Russian,
Spanish, Simplified Chinese, Turkish, Traditional
Chinese
• Regulatory approvals: CE, FCC, Class A, RoHS, CB,
BSMI, ETL, PSE
• Warranty: 3 years warranty
