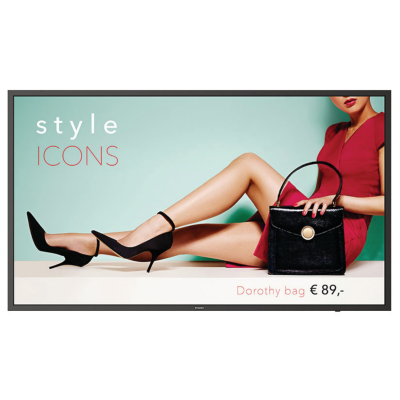

55BDL4002H 55" FHD 24/7 High-Brightness Display
55BDL4002H FHD 55" 2500 cd/m² OPS Failover
Key Features:
- Effortless setup. Total control.
- CMND & Create. Develop and launch your own content
- Add Android processing power with an optional CRD50 module
- Versatile system solution
- OPS slot allows for PC embedding without cabling
- FailOver. Ensure your display never goes blank
- Designed for extreme conditions
- Superb picture. Ultra-high brightness.
- Full HD resolution street signage
- Built-in ambient light sensor - automated brightness control
The 55BDL4002H is a 55 inch FHD high brightness 24/7 display with an expandable OPS slot for additional computing power. The failover feature ensures an output is always displayed even in the event of the primary source disconnecting. Also equipped with CMND & Create for simple drag-and-drop content publishing.
Key Features:
- Effortless setup. Total control.
- CMND & Create. Develop and launch your own content
- Add Android processing power with an optional CRD50 module
- Versatile system solution
- OPS slot allows for PC embedding without cabling
- FailOver. Ensure your display never goes blank
- Designed for extreme conditions
- Superb picture. Ultra-high brightness.
- Full HD resolution street signage
- Built-in ambient light sensor - automated brightness control
Picture/Display
• Diagonal screen size: 54.6 inch / 138.7 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60Hz
• Brightness: 2500 cd/m²
• Dynamic contrast ratio: 500,000 : 1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.63 x 0.63 mm
• Display colors: 1.07 B
• Contrast ratio (typical): 4000:1
Connectivity
• Video input: Display Port1.2 (x1), DVI-I (x 1), HDMI
2.0 (x2)
• Audio input: 3.5 mm jack
• Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)
• Audio output: 3.5mm jack
• External control: IR (in/out) 3.5 mm jack, RJ45,
RS232C (in/out) 2.5 mm jack
• Other connections: OPS, USB 2.0 (x2)
Supported Display Resolution
• Computer formats
640 x 480 60, 72, 75Hz
720 x 400 70Hz
800 x 600 60, 75Hz
1024 x 768 60, 75Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 960 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
• Video formats
720p 50, 60Hz
1080i 25, 30Hz
1080p 50, 60Hz
Dimensions
• Smart Insert mount: 100mm x 100mm pitch,
6xM4L6
• Set dimensions (W x H x D):
1248.6 x 719.4 x 85 mm
• Set dimensions in inch (W x H x D):
49.16 x 28.32 x 3.35 inch
• Bezel width: 17.5 mm (even bezel)
• Wall Mount: 400 x 400 mm, M6
• Smart insert height: 100 mm
• Product weight: 30.37 kg
• Product weight (lb): 66.95 lb
Convenience
• Placement: Landscape (24/7), Portrait (24/7)
• Screen saving functions: Pixel Shift, Low Brightness
• Signal loop through: DisplayPort, RS232, HDMI, IR
Loopthrough
• Ease of installation: Carrying Handles, Smart Insert
• Energy saving functions: Smart Power
• Network controllable: RS232, RJ45
• Keyboard control: Hidden, Lockable
• Remote control signal: Lockable
Power
• Consumption (Typical): 245 W
• Consumption (Max): 430 W
• Standby power consumption: <0.5W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 ~ 80% RH (No
condensation)
• Humidity range (storage) [RH]: 5 ~ 95% RH (No
condensation)
Sound
• Built-in speakers: 2 x 10W RMS
Accessories
• Included Accessories: AC Switch Cover, IR sensor
cable (1.8 m) (x1), Philips logo (x1), Quick start
guide (x1), Remote control & AAA batteries, USB
Cover and screw x1, Wire Clamper (x3), AC Power
Cord, Edge Alignment Kit, Open frame kit
Multimedia Applications
• USB Playback Video: AVI, MP4, MPEG, MPG, TS,
VOB, MPEG4
• USB Playback Picture: BMP, JPEG, JPG, PNG
Miscellaneous
• On-Screen Display Languages: Arabic, Dutch,
English, French, German, Italian, Japanese, Polish,
Portuguese, Russian, Spanish, Simplified Chinese,
Turkish, Traditional Chinese
• Regulatory approvals: CE, FCC, Class A, UL/cUL, CB
• Warranty: 3 year warranty
Internal Player
• CPU: 2 x A53 + 2 x A73
• GPU: ARM Mali G51
• Memory: 3GB DDR
• Storage: 32 GB eMMc
