55BDL3105X 55" FHD 24/7 Video Wall Display
55BDL3105X 55" FHD 24/7 Video-Wall 3.5mm-Bezel OPS
Key Features:
- Immersive visual experience
- Direct LED IPS display with brilliant FHD picture quality
- Ultra-narrow 3.5mm bezel for near seamless display linking
- Pure Colour Pro and advanced colour accuracy
- Control made easy
- Remote system management through CMND
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
- Powerful system solution
- Tiling mode. Create tiled 4K videowalls of any size
- FailOver ensures content is always playing
- OPS slot allows for PC embedding without cabling
- Energy saving automatic backlight control when using CRD41

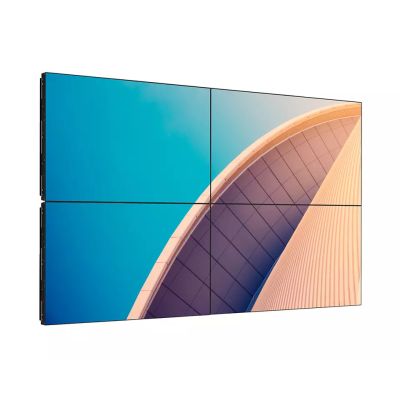

The 55BDL3105X is a 55" FHD 24/7 video wall display designed with an ultra-narrow bezel for use in tiled screen setups. Equipped with CMND & Control for network management along with Pure Colour Pro for better visual calibration.
Key Features:
- Immersive visual experience
- Direct LED IPS display with brilliant FHD picture quality
- Ultra-narrow 3.5mm bezel for near seamless display linking
- Pure Colour Pro and advanced colour accuracy
- Control made easy
- Remote system management through CMND
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
- Powerful system solution
- Tiling mode. Create tiled 4K videowalls of any size
- FailOver ensures content is always playing
- OPS slot allows for PC embedding without cabling
- Energy saving automatic backlight control when using CRD41
Picture/Display
• Diagonal screen size: 54.6 inch / 138.7 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 500 cd/m²
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.63 x 0.63 mm
• Display colors: 1.07 B
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Motion compens. deinterlacing,
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement
Supported Display Resolution
• Computer formats
1920 x 1080 60Hz
1600 x 1200 60Hz
1366 x 768 60Hz
1360 x 768 60Hz
1280 x 1024 60Hz
1280 x 800 60Hz
1280 x 768 60Hz
1024 x 768 60, 75Hz
1280 x 960 60Hz
640 x 480 60, 72, 75Hz
720 x 400 70Hz
800 x 600 60, 75Hz
• Video formats
1080p 50, 60Hz
720p 50, 60Hz
1080i 25, 30Hz
Connectivity
• Video input: Component BNC (x3), Composite
(Share component Y), DisplayPort, DVI-D (x1),
VGA (Analog D-Sub) (x1), HDMI (x2)
• Video output: DisplayPort, DVI-I (x1)
• Audio input: 3.5 mm jack, Audio Left/Right (RCA)
• Audio output: Audio Left/Right (RCA)
• External control: IR (in/out) 3.5 mm jack, RS232C
(in/out) 2.5 mm jack, RJ45
• Other connections: OPS
Convenience
• Signal loop through: RS232, DisplayPort, IR
Loopthrough
• Ease of installation: Carrying Handles, Smart Insert
• Energy saving functions: Smart Power
• Network controllable: RS232, RJ45
• Placement: Landscape, Portrait
• Screen saving functions: Pixel Shift, Low Bright
• Tiled Matrix: Up to 15 x 15
• Control software: SICP / CMND&Control
Dimensions
• Bezel thickness: 3.5 mm (A-A)
• Bezel width: Top/Left: 2.3mm, Bottom/Right:
1.2mm
• Set dimensions (W x H x D): 1213.4 x 684.2 x 98
mm(D@Wall Mount)/ 99.2 (D@Handle) mm
• Set dimensions in inch (W x H x D):
47.77 x 26.94 x 3.86 (D@Wall Mount)/ 3.91
(D@Handle) inch
• Product weight: 26.2 kg
• Wall Mount: 400 x 400 mm
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 ~ 80% RH
(No condensation)
• Humidity range (storage) [RH]: 5 ~ 95% RH (No
condensation)
Power
• Standby power consumption: <0.5W
• Consumption (Max): 320 W
• Consumption (Typical): 160 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
• Energy Label Class: G
Sound
• Built-in speakers: 2 x 10W (RMS)
Accessories
• Included accessories: Remote Control, Batteries
for remote control, AC Power Cord, Quick start
guide, Edge alignment pins, DVI-D cable, RS232
cable
• Optional accessories: Edge finishing kit, Color
calibration kit, CRD41
• Included Accessories: Edge Alignment Kit (1) -1
pcs, Edge Alignment Kit (2) - 2 pcs, HDMI cable
(1.8 m) (x1), IR cable, IR sensor cable (1.8 m) (x1),
RS232 daisy chain cable, Thumb Screw (x8)
Miscellaneous
• On-Screen Display Languages: Arabic, Simplified
Chinese, Traditional Chinese, English, French,
German, Italian, Japanese, Polish, Russian, Spanish,
Turkish
• Regulatory approvals: CE, CB, BSMI, CU, EPA,
ETL, FCC, Class A, PSB, RoHS, VCCI
• Warranty: 3 year warranty
Multimedia Applications
• USB Playback Audio: AAC, AIF, AIFF, ASF, LPCM,
M3U, M4A, MP3, MP4, PLS, WMA
• USB Playback Picture: BMP, GIF, JPEG, JPG, PNG
• USB Playback Video: ISM, M4V, Manifest, MK3D,
MKV, MP4, MPD, MPEG, MPG, MT2, MTS, TS,
TTS, VOB
