49BDL2105X 49" FHD 24/7 Tiled Display
49BDL2105X 49" FHD 24/7 500cd/m² Slim-Bezel
Key Features:
- Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
- Cost-effective system solution
- FailOver ensures content is always playing
- Brilliant images. Endless possibilities.
- Full HD monitors. Brilliant images. Clear contrast
- IPS panel: rich color consistency from every angle
- Ultra-narrow bezels. For distraction-free images
- Powerful system solution
- Energy-saving automatic backlight control
- OPS slot allows for PC embedding without cabling
- Tiling mode. Create tiled 4K videowalls of any size

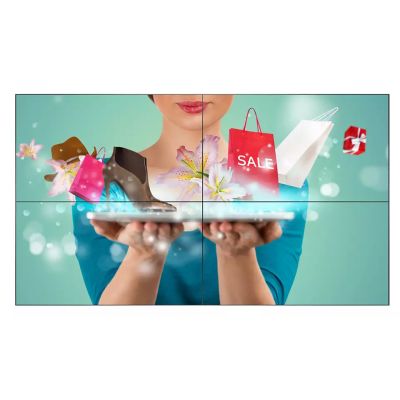

The 49BDL2105X is a 49 inch 24/7 video wall display with slim bezels to enable a clearer image. Failover ensures an output is always displayed even in the event of the primary source disconnecting. Also equipped with CMND & Control for network management alongside tiling mode for a videowall expreience without the need for external players.
Key Features:
- Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
- Cost-effective system solution
- FailOver ensures content is always playing
- Brilliant images. Endless possibilities.
- Full HD monitors. Brilliant images. Clear contrast
- IPS panel: rich color consistency from every angle
- Ultra-narrow bezels. For distraction-free images
- Powerful system solution
- Energy-saving automatic backlight control
- OPS slot allows for PC embedding without cabling
- Tiling mode. Create tiled 4K videowalls of any size
Picture/Display
• Diagonal screen size: 48.5 inch / 123 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 500 cd/m²
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.55926 x 0.55926 mm
• Display colors: 1.07 B
• Contrast ratio (typical): 1000:1
• Haze: 3 %
Supported Display Resolution
• Computer formats
640 x 480 60, 72, 75Hz
720 x 400 70Hz
800 x 600 60, 75Hz
1024 x 768 60, 75Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 960 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
• Video formats
720p 50, 60Hz
1080i 25, 30Hz
1080p 50, 60Hz
2160P 50 60Hz ((HDMI/OPS/DP)
Connectivity
• Video input: Component (BNC x3), Composite
(Share component Y), Display Port1.2 (x1), DVI-D,
HDMI 1.4 (x2), USB 2.0 ( x1), VGA (Analog D-Sub)
• Video output: DisplayPort 1.2 (x1), DVI-I (x1)
• Audio input: 3.5 mm jack, Audio Left/Right (RCA)
• Audio output: 3.5mm jack, External speaker
connection
• External control: RJ45, RS232C (in/out) 2.5 mm
jack, IR (in/out) 3.5 mm jack
• Other connections: OPS
Convenience
• Placement: Landscape (24/7), Portrait (24/7)
• Tiled Matrix: Up to 15 x 15
• Screen saving functions: Pixel Shift, Low Bright
• Signal loop through: DisplayPort, RJ45
• Ease of installation: Carrying Handles, Smart Insert
• Energy saving functions: Smart Power
• Network controllable: LAN (RJ45)
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 - 80%
(without condensation)
• Humidity range (storage) [RH]: 5 - 95% (without
condensation)
Power
• Consumption (Typical): 100 W
• Consumption (Max): 230 W
• Consumption (On mode): 64 W
• Standby power consumption: 0.5 W
• Energy Label Class: G
Sound
• Built-in speakers: 2 x 10W (RMS)
Accessories
• Included Accessories: Gap pad x3, IR sensor cable
(1.8 m) (x1), Kit-1 (x1), Kit-2 (x2), Quick start
guide (x1), Remote control & AAA batteries, RJ45
/ RS232 converter, Wire Clamper (x3), Power
cord, DP cable (x1), Edge alignment pin (x2), RJ45
cable (x1)
Multimedia Applications
• USB Playback Audio: AAC, AIF, AIFF, ASF, M3U,
M4A, MP3, MP4, PLS, WAV, WMA
• USB Playback Picture: BMP, GIF, JPEG, JPG, PNG
• USB Playback Video: ISM, M4V, MK3D, MKV, MP4,
MPD, MPEG, MPG, MT2, MTS, TS, TTS, VOB
Miscellaneous
• On-Screen Display Languages: Arabic, English,
French, German, Italian, Japanese, Polish, Russian,
Spanish, Simplified Chinese, Turkish, Traditional
Chinese
• Regulatory approvals: CE, FCC, Class A, RoHS,
CB, BSMI, ETL
• Warranty: 3 years warranty
Dimensions
• Smart Insert mount: 100mm x 100mm, 6xM4xL6
• Set dimensions (W x H x D):
1077.6 x 607.8 x 93.3 mm(D@WallMount)/
103.3mm(D@Handle) mm
• Set dimensions in inch (W x H x D):
42.44 x 23.94 x 3.68 (D@WallMount)/4.1
(D@Handle) inch
• Bezel width: 2.3 mm + 1.2 mm
• Wall Mount: 400mm x 400mm, M6
• Product weight: 21.7 kg
