49BDL2005X 49" FHD 24/7 Tiled Display
49BDL2005X 49" FHD 24/7 500cd/m² Slim-Bezel
Key Features:
- Brilliant images. Endless possibilities.
- Full HD monitors. Brilliant images. Clear contrast
- IPS panel: rich color consistency from every angle
- Ultra-narrow (3.5 mm) bezels. For distraction-free images
- Effortless setup. Total control.
- Add Android processing power with an optional CRD50 module
- Operate, monitor and maintain with CMND & Control
- Powerful system solution
- Tiling mode. Create tiled 4K videowalls of any size
- OPS slot allows for PC embedding without cabling
- Energy-saving automatic backlight control
- Cost-effective system solution
- FailOver ensures content is always playing

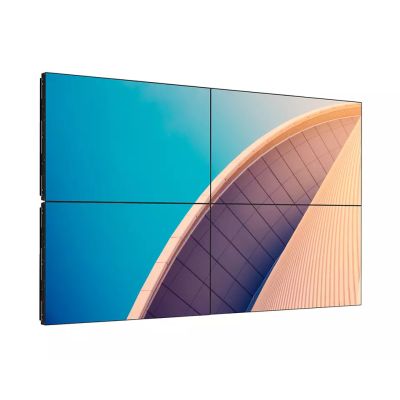

The 49BDL2005X is a 49 inch 24/7 video wall display with slim bezels to enable a clearer image. Failover ensures an output is always displayed even in the event of the primary source disconnecting. Also equipped with CMND & Control for network management alongside tiling mode for a videowall expreience without the need for external players.
Key Features:
- Brilliant images. Endless possibilities.
- Full HD monitors. Brilliant images. Clear contrast
- IPS panel: rich color consistency from every angle
- Ultra-narrow (3.5 mm) bezels. For distraction-free images
- Effortless setup. Total control.
- Add Android processing power with an optional CRD50 module
- Operate, monitor and maintain with CMND & Control
- Powerful system solution
- Tiling mode. Create tiled 4K videowalls of any size
- OPS slot allows for PC embedding without cabling
- Energy-saving automatic backlight control
- Cost-effective system solution
- FailOver ensures content is always playing
Picture/Display
• Diagonal screen size: 48.5 inch / 123.2 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 500 cd/m²
• Contrast ratio (typical): 1200 : 1
• Dynamic contrast ratio: 500,000 : 1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.559 x 0.559 mm
• Display colors: 1.07B
• Picture enhancement: 3/2 - 2/2 motion pull down,
Motion compens. deinterlacing, Progressive scan,
Dynamic contrast enhancement
• Haze: 3%
Supported Display Resolution
• Computer formats
1024 x 768 60, 75Hz
1280 x 1024 60Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 960 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
640 x 480 60, 72, 75Hz
720 x 400 70Hz
800 x 600 60, 75Hz
3840 X 2160 30Hz (Tiling)
• Video formats
1080i 25, 30Hz
1080p 50, 60Hz
720p 50, 60Hz
Connectivity
• Video input: DVI-D, VGA (Analog D-Sub),
Component (BNC x3), Display Port1.2 (x1), HDMI
1.4 (x2), Composite (Share component Y), USB 2.0
( x1)
• Video output: DisplayPort 1.2 (x1), DVI-I (x1)
• Audio input: 3.5 mm jack, Audio Left/Right (RCA)
• Audio output: 3.5mm jack, External speaker
connection
• External control: IR (in/out) 3.5 mm jack, RJ45,
RS232C (in/out) 2.5 mm jack
• Other connections: OPS
Convenience
• Signal loop through: RS232, DisplayPort, DVI
Loopthrough, IR Loopthrough
• Ease of installation: Carrying Handles, Smart Insert
• Energy saving functions: Smart Power
• Network controllable: RS232, RJ45
• Placement: Portrait, Landscape
• Screen saving functions: Pixel Shift, Low Bright
• Tiled Matrix: Up to 10 x 10
• Control software: SICP / CMND&Control
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 ~ 80% RH
(No condensation)
• Humidity range (storage) [RH]: 5 ~ 95% RH (No
condensation)
Power
• Standby power consumption: <0.5W
• Consumption (Max): 220 W
• Consumption (Typical): 100 W\
Sound
• Built-in speakers: 2 x 10W (RMS)
Accessories
• Included Accessories: IR cable, IR sensor cable (1.8
m) (x1), RS232 daisy chain cable, Kit-1 (x1), Kit-2
(x2), Thumb Screw (x8)
• Included accessories: Remote Control, Batteries
for remote control, AC Power Cord, Quick start
guide, DVI-D cable, RS232 cable, Edge alignment
pins
• Optional accessories: Color calibration kit,
CRD41, Edge finishing kit
Multimedia Applications
• USB Playback Audio: AAC, AIF, AIFF, ASF, M3U,
M4A, MP3, MP4, PLS, WAV, WMA
• USB Playback Picture: BMP, GIF, JPEG, JPG, PNG
• USB Playback Video: ISM, M4V, MK3D, MKV,
MPD, MPEG, MPG, MT2, MTS, TS, VOB, MP4, TTS
Miscellaneous
• On-Screen Display Languages: Arabic, Simplified
Chinese, Traditional Chinese, English, French,
German, Italian, Japanese, Polish, Russian, Spanish,
Turkish
• Regulatory approvals: CE, CB, BSMI, CU, ETL,
FCC, Class A, PSB, RoHS
• Warranty: 3 year warranty
Dimensions
• Bezel width: Top/Left: 2.3mm, Bottom/Right:
1.2mm
• Set dimensions (W x H x D):
1077.6 x 607.8 x 93.5 mm mm
• Set dimensions in inch (W x H x D):
42.4 x 23.9 x 3.68 inch
• Wall Mount: 400 x 400 mm, M6
• Product weight: 21.0 kg
• Product weight (lb): 47.30 lb
• Smart Insert mount: 100 x100mm, 6 x M4 L6
• Bezel thickness: 3.5 mm (B-B)
