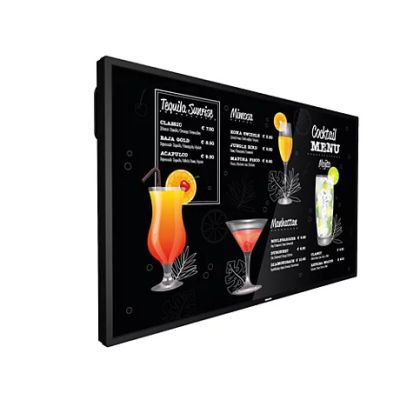

43BDL3117P 43" UHD 24/7 SDM-L Display
43BDL3117P 43" UHD 24/7 D-Image Failover SDM-L
Key Features:
- Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- Brilliant picture. Strong build.
- D-image:clinically accurate imaging
- Robust metal housing
- Robust system solution
- Energy-saving automatic backlight control
- FailOver ensures content is always playing
- Sophistication and intelligence with SDM-L
The 43BDL3117P is a 43 inch UHD 24/7 display with factory-calibrated greyscale performance for compliance with clinical use. Failover ensures an output is always displayed even in the event of the primary source disconnecting. SDM-L allows cost-effective and quick upgrades to displays with the added benefit of staying as slim as possible. Also equipped with CMND & Control for network management.
Key Features:
- Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- Brilliant picture. Strong build.
- D-image:clinically accurate imaging
- Robust metal housing
- Robust system solution
- Energy-saving automatic backlight control
- FailOver ensures content is always playing
- Sophistication and intelligence with SDM-L
Picture/Display
• Diagonal screen size: 42.5 inch / 108 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @ 60Hz
• Brightness: 700 cd/m²
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.2451 x 0.2451 mm
• Display colors: 1.07 billion
• Panel technology: ADS
• Contrast ratio (typical): 1200:1
• Haze: 25 %
Supported Display Resolution
• Computer formats
1440 x 900 60Hz
1024 x 768 60, 70, 75Hz
1152 x 864 75Hz
1152 x 870 75Hz
1280 x 1024 60Hz
1280 x 720 60Hz
1280 x 800 60Hz
1600 x 1200 60Hz
1680 x 1050 60Hz
1920 x 1080 60Hz
640 x 480 60, 67, 72, 75Hz
720 x 400 70Hz
800 x 600 56, 60, 72, 75Hz
• Video formats
480p 60Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
3840 x 2160 30Hz
3840 x 2160 60Hz
Connectivity
• Video input: Display Port1.2 (x1), DVI-I (x 1), USB
2.0 ( x1), HDMI 2.0 (x3)
• Audio input: 3.5 mm jack
• Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)
• Audio output: 3.5mm jack
• External control: IR (in/out) 3.5 mm jack, RJ45,
RS232C (in/out) 2.5 mm jack, Ambient Light
Sensor
• Other connections: Micro SD (x1), SDM-L,
Thermal sensor
Convenience
• Placement: Landscape (24/7), Portrait (24/7)
• Tiled Matrix: Up to 15 x 15
• Screen saving functions: Pixel Shift, Low Bright
• Signal loop through: DisplayPort, RS232, HDMI, IR
Loopthrough
• Ease of installation: Carrying Handles
• Energy saving functions: Smart Power
• Network controllable: RS232, RJ45
• Keyboard control: Hidden, Lockable
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 ~ 80% RH
(No condensation)
• Humidity range (storage) [RH]: 5 ~ 95% RH (No
condensation)
Power
• Consumption (Typical): 80 W
• Consumption (Max): 220 W
• Standby power consumption: <0.5 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
• Energy Label Class: G
Sound
• Built-in speakers: 2 x 10W (RMS)
Accessories
• Stand: BM05922(optional)
• Included Accessories: AC Switch Cover, Philips
logo (x1), Power cable (x3), Quick start guide (x1),
Remote control & AAA batteries, RS232 cable (3
m) (x1), RS232 daisy chain cable (x1), USB Cover
(x1), Wire Clamper (x3), Edge Alignment Kit (x2)
Multimedia Applications
• USB Playback Video: H.264, Motion JPEG, MPEG1/
2, WMV3
• USB Playback Picture: BMP, JPEG, PNG
• USB Playback Audio: AAC, MPEG, HEAAC
Miscellaneous
• On-Screen Display Languages: Arabic, Dutch,
Danish, English, French, Finnish, German, Italian,
Japanese, Norwegian, Polish, Portuguese, Russian,
Spanish, Swedish, Simplified Chinese, Turkish,
Traditional Chinese
• Regulatory approvals: CE, FCC, Class A, CB, BSMI,
EAC, EMF, VCCI, PSB, ETL, EPA
• Warranty: 3 year warranty
Dimensions
• Set dimensions (W x H x D):
973 x 561.2 x 76.80 mm
• Set dimensions in inch (W x H x D):
38.31 x 22.1 x 3.02 inch
• Bezel width: 13.9mm (Even bezel)
• Wall Mount: 200 x 200 mm, M6
• Product weight: 13.94 kg
• Product weight (lb): 30.73 lb
