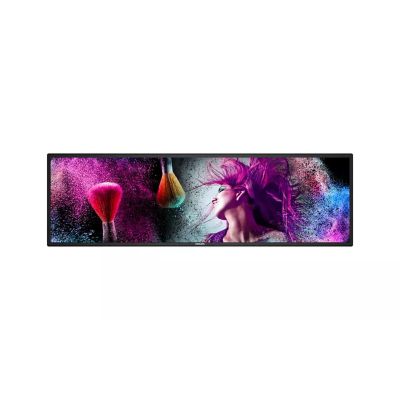

37BDL3050S 37" 24/7 Stretched Android Display
37BDL3050S 37" 24/7 700cd/m² 32:9 Android Tiled-Setup
Key Features:
- Ready for impact
- Operate, monitor and maintain with CMND & Control
- Smart and robust
- Android: Run your own app or choose your favorite app to run
- Designed for 24/7 operation for highest accuracy
- Integrated media player. Easily schedule USB content
- Versatile and impressive
- High brightness for clearer images
- Simple and powerful daisy chaining for multi-display setup
- Tiling mode. Create tiled set up of your choice
The 37BDL3050S is a 37 inch stretched high brightness 24/7 display with a unique 32:9 design along with a 1920x540 resolution. Features an internal player along with Android 8 for use with software apps. Failover ensures an output is always displayed even in the event of the primary source disconnecting. Also equipped with CMND & Control for network management alongside HDMI daisy chaining for tiled setups.
Key Features:
- Ready for impact
- Operate, monitor and maintain with CMND & Control
- Smart and robust
- Android: Run your own app or choose your favorite app to run
- Designed for 24/7 operation for highest accuracy
- Integrated media player. Easily schedule USB content
- Versatile and impressive
- High brightness for clearer images
- Simple and powerful daisy chaining for multi-display setup
- Tiling mode. Create tiled set up of your choice
Picture/Display
• Diagonal screen size (inch): 37 inch
• Panel resolution: 1920 x 540
• Optimum resolution: 1920 x 540 @ 60 Hz
• Brightness: 700 cd/m²
• Response time (typical): 8 ms
• Aspect ratio: 32:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.47 x 0.47 mm
• Display colors: Normally Black
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, De-interlacer, Progressive scan, 3D
MA deinterlacing, Smart Picture, Color
Temperature Adjustment, Color Enhancement,
Noise Reduction
• Panel technology: AG
• Contrast ratio (typical): 4000:1
• Operating system: Android 8.0
• Placement: Landscape (24/7), Portrait (24/7)
Supported Display Resolution
• Computer formats
640 x 480 60,67,75Hz
720 x 400 70Hz
800 x 600 60Hz
832 x 624 75Hz
1024 x 768 60Hz
1152 x 870 75Hz
1280 x 720 60Hz
1280 x 1024 60Hz
1440 x 900 60Hz
1680 x 1050 60Hz
1920 x 1080 60Hz
• Video formats
480i 60Hz
480p 60Hz
576p 50Hz
576i 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
Connectivity
• Video input: HDMI 2.0 (x1), USB 2.0 ( x1), VGA
(Analog D-Sub) (x1)
• Audio input: 3.5 mm jack
• Video output: HDMI 2.0 (x1)
• Audio output: 3.5mm jack
• External control: IR (in/out) 3.5 mm jack, RJ45,
RS232C (in/out) 2.5 mm jack
Convenience
• Signal loop through: RS232, HDMI, IR Loopthrough
• Network controllable: LAN (RJ45)
Operating conditions
• Temperature range (operation): 0~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 - 80% RH (No
condensation)
• Humidity range (storage) [RH]: 5 - 95% RH (No
condensation)
Power
• Consumption (Typical): 70 W
• Consumption (Max): 85 W
• Standby power consumption: <0.5W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Accessories
• Included Accessories: AC Switch Cover, IR sensor
cable (1.8 m) (x1), Philips logo (x1), Quick start
guide (x1), Remote control & AAA batteries, RS232
daisy chain cable, AC power cord, RS232 cable,
HDMI cable, Wall mount bolt x2
Miscellaneous
• On-Screen Display Languages: Arabic, Dutch,
Danish, English, French, Finnish, German, Italian,
Japanese, Norwegian, Polish, Portuguese, Russian,
Spanish, Swedish, Simplified Chinese, Turkish,
Traditional Chinese, Czech
• Regulatory approvals: CE, FCC, Class A, CB
• Warranty: 3 years warranty
Internal Player
• CPU: 2 x A53 + 2 x A73
• GPU: ARM Mali G51
• Memory: 2GB DDR3
• Storage: 8GB eMMC
Dimensions
• Set dimensions (W x H x D):
928.5 x 282.3 x 48.7 mm
• Bezel width: 12.4mm(T/B); 10.5mm(R/L)
• Wall Mount: 400mm x 200mm , M6
• Product weight: 7.76 kg
