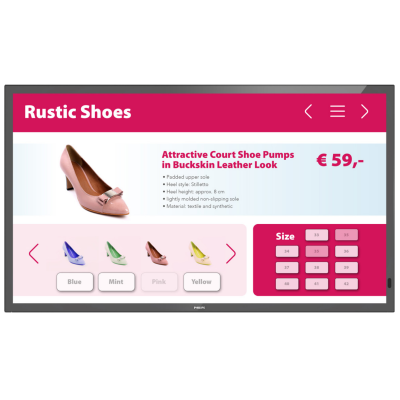

32BDL3651T 32" FHD 18/7 Multi-Touch Android Display
32BDL3651T 32" FHD 18/7 Multi-Touch Android Display
Key Features:
- Superb picture. Responsive touchscreen.
- Full HD. Clear images. Crisp contrast
- Plug-and-play 10-point Multi-Touch display
- Android SoC processor. Native and web apps
- UHD Clear images. Crisp contrast
- Effortless setup. Total control.
- CMND & Deploy. Install and launch apps remotely
- Operate, monitor and maintain with CMND & Control
- CMND & Create. Develop and launch your own content
- Versatile system solution
- Energy-saving automatic backlight control
- FailOver ensures content is always playing
- Internal memory. Upload content for instant play
- Simplified user interaction with kiosk mode
The 32BDL3651T is a 32 inch FHD 18/7 display with included Android 8 for use with web apps and content delivery. Failover ensures an output is always displayed even in the event of the primary source disconnecting. Equipped with the Philips CMND suite for easy deployment, management and content creation through a network connectivity and app store usage.
Key Features:
- Superb picture. Responsive touchscreen.
- Full HD. Clear images. Crisp contrast
- Plug-and-play 10-point Multi-Touch display
- Android SoC processor. Native and web apps
- UHD Clear images. Crisp contrast
- Effortless setup. Total control.
- CMND & Deploy. Install and launch apps remotely
- Operate, monitor and maintain with CMND & Control
- CMND & Create. Develop and launch your own content
- Versatile system solution
- Energy-saving automatic backlight control
- FailOver ensures content is always playing
- Internal memory. Upload content for instant play
- Simplified user interaction with kiosk mode
Picture/Display
• Diagonal screen size: 32 inch / 80 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 350 cd/m²
• Contrast ratio (typical): 4000:1
• Surface treatment: Anti-Glare coating
• Aspect ratio: 16:9
• Response time (typical): 6.5 ms
• Pixel pitch: 0.36375(H)X0.36375(V) mm
• Display colors: 16.7 M
• Viewing angle (H / V): 178 / 178 degree
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Motion compens. deinterlacing,
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement
• Operating system: Android 8.0
• Panel technology: VA
Interactivity
• Multi-touch technology: Projected capacitive
• Touch points: 10 simultaneous touch points
• Plug and play: HID compliant
• Protection glass: 2 mm tempered safety glass
Connectivity
• Video input: DVI-I (x 1), HDMI 2.0 (x2), USB 2.0
Type A (x2), USB 2.0 Type B (x1), VGA (via DVI-I)
x1
• Audio input: 3.5 mm jack
• Audio output: 3.5mm jack
• External control: RJ45, IR (in/out) 3.5 mm jack,
RS232C (in/out) 2.5 mm jack
• Other connections: micro SD
Supported Display Resolution
• Computer formats
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1440 x 900 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
1920 x 1200 60Hz
720 x 400 70Hz
800 x 600 60, 72, 75Hz
3840 x 2160 60 Hz, 50 Hz
• Video formats
480i 60Hz
480p 60Hz
576p 50Hz
576i 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
1080i 25, 30Hz
480i 30, 60Hz
576i 25, 50Hz
3840 x 2160 24, 25Hz
3840 x 2160 30Hz
Convenience
• Placement: Landscape (18/7), Portrait (18/7)
• Signal loop through: IR Loopthrough, RS232
• Network controllable: RS232, RJ45
• Screen saving functions: Pixel Shift, Low Brightness
• Keyboard control: Hidden, Lockable
• Remote control signal: Lockable
• Energy saving functions: Smart Power
Dimensions
• Set dimensions (W x H x D):
749.1 x 443.6 x 70.4(D@Wall mount)/
74.4(D@AC) mm
• Set dimensions in inch (W x H x D):
29.49 x 17.46 x 2.77D@Wall mount)/
2.93(D@AC) inch
• Product weight: 8.0 kg
• Product weight (lb): 17.64 lb
• Wall Mount: 100mm x 100mm, 200mm x 200mm ,
M4
• Bezel width: 2.0 mm (T/R/L/B)
Sound
• Built-in speakers: 2 x 10W
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• MTBF: 50,000 hour(s)
• Altitude: 0 ~ 3000 m
• Temperature range (storage): -20~60 °C
• Humidity range (operation)[RH]: 20 ~ 80%
(without condensation)
• Humidity range (storage) [RH]: 5 ~ 95% (without
condensation)
Power
• Mains power: 100 ~ 240 VAC, 50/60Hz
• Standby power consumption: <0.5W
• Consumption (Typical): 50 W
• Power Saving Features: Smart Power
• Consumption (Max): 80 W
• Energy Label Class: G
Accessories
• Stand: BM05922 (Optional)
• Included Accessories: Cleaning cloth (x1), IR
sensor cable (1.8 m) (x1), Philips logo (x1), Power
supply cable (3 m), Quick start guide (x1), Remote
control & AAA batteries, RS232 cable (3 m) (x1),
RS232 daisy chain cable (x1), USB Cover and screw
x1
Miscellaneous
• On-Screen Display Languages: Arabic, English,
French, German, Italian, Japanese, Polish, Spanish,
Turkish, Russian, Simplified Chinese, Traditional
Chinese, Danish, Dutch, Finnish, Norwegian,
Portuguese, Swedish
• Regulatory approvals: BSMI, CB, CE, CU, ETL,
FCC, Class A, IMDA, PSB, RoHS
• Warranty: 3 year warranty
Multimedia Applications
• USB Playback Picture: BMP, GIF, JPEG, JPG, PDF
• USB Playback Audio: AAC, AIF, AIFF, ASF, LPCM,
M3U, M4A, MP3, MP4, WAV, WMA
• USB Playback Video: M2TS, M4V, MK3D, MKV,
MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV
Internal Player
• CPU: 2 x A53 + 2 x A73
• Memory: 2GB DDR3, 8GB
• GPU: ARM Mali G51
• Wifi: 2.4 G, 5 G
