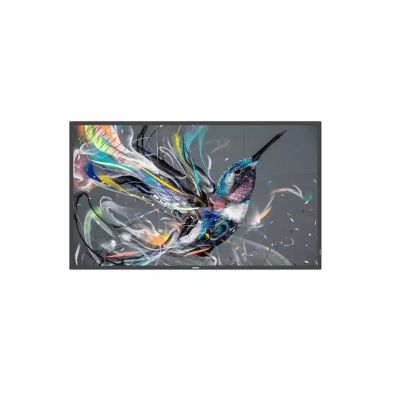

32BDL3550Q 32" FHD 18/7 Android Display
32BDL3550Q 32" FHD Android 8 CMND & Control SmartBrowser Failover Internal Player
Key Features:
- Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- CMND & Create. Develop and launch your own content
- Cost-effective system solution
- Energy-saving automatic backlight control
- Integrated media player. Easily schedule USB content
- Easy control. Remotely manage networked displays
- FailOver ensures content is always playing
- Smart and powerful
- Android SoC processor. Native and web apps
- Connect and control your content over the internet
- Connect and control your content via the cloud
The 32BDL3550Q is a 32 inch FHD easy-setup 18/7 display with included SmartPlayer to allow for schedulded content management all from a single USB device. Powered by Android version 8.0 for deployment of Android and web apps directly to the display.
Included with HTML5 Chromium based SmartBrowser allows users to stream content to the device along with various other controls. The failover feature ensures an output is always displayed even in the event of the primary source disconnecting. CMND & Control provides network management through a LAN connection, giving both monitoring capabilites and input control. Also equipped with CMND & Create for simple drag-and-drop content publishing.
Key Features:
- Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- CMND & Create. Develop and launch your own content
- Cost-effective system solution
- Energy-saving automatic backlight control
- Integrated media player. Easily schedule USB content
- Easy control. Remotely manage networked displays
- FailOver ensures content is always playing
- Smart and powerful
- Android SoC processor. Native and web apps
- Connect and control your content over the internet
- Connect and control your content via the cloud
Picture/Display
• Diagonal screen size: 31.5 inch / 80 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 350 cd/m²
• Contrast ratio (typical): 4000:1
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.36375 x 0.36375 mm
• Display colors: 16.7 Million
• Panel technology: VA
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, 3D MA deinterlacing, Dynamic
contrast enhancement, Motion compens.
deinterlacing, Progressive scan
• Clinical image: D-Image preset (dicom part 14
compatible)
• Operating system: Android 8.0
Supported Display Resolution
• Computer formats
1920 x 1080 60Hz
1680 x 1050 60Hz
1600 x 1200 60Hz
1440 x 900 60Hz
1280 x 1024 60Hz
1280 x 800 60Hz
1280 x 720 60Hz
1152 x 870 75Hz
1024 x 768 60, 70, 75Hz
800 x 600 56, 60, 72, 75Hz
720 x 400 70Hz
640 x 480 60, 67, 72, 75Hz
1152 x 864 75Hz
832 x 624 75Hz
• Video formats
576p 50Hz
576i 50Hz
480p 60Hz
480i 60Hz
1080p 50, 60Hz
1080i 50, 60Hz
3840 x 2160 30Hz
3840 x 2160 60Hz
720p 50,60 Hz
Connectivity
• Video input: DVI-I (x 1), HDMI 2.0 (x2), USB 2.0
(x2)
• Audio input: 3.5 mm jack
• Audio output: 3.5mm jack
• External control: RJ45, RS232C (in/out) 2.5 mm
jack, IR (in/out) 3.5 mm jack
Convenience
• Energy saving functions: Smart Power
• Tiled Matrix: Up to 15 x 15
• Start-up: Switch on delay, Switch on status, Boot
on source
• Start-up window: enable / disable Philips logo
• Keyboard control: Lockable, Hidden
• Network controllable: RS232, RJ45
• Signal loop through: RS232, IR Loopthrough
• Placement: Landscape (18/7), Portrait (18/7)
• Remote control signal: Lockable
Dimensions
• Bezel width: 11.9 (TLR) / 17.2 (B) mm
• Set dimensions (W x H x D):
726.5 x 425.4 x 69.1(D@Handle) / 65.1(D@Wall
mount) mm
• Set dimensions in inch (W x H x D):
28.6 x 16.75 x 2.72 (D@Handle) / 2.56 (D@Wall
mount)f inch
• Wall Mount: 100mm x100mm, 200mm x 200mm
,M4
• Product weight: 5.31 kg
• Product weight (lb): 11.71 lb
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• MTBF: 30,000 hour(s)
• Altitude: 0 ~ 3000 m
• Humidity range (operation)[RH]: 20 ~ 80% RH
(No condensation)
• Humidity range (storage) [RH]: 5 ~ 95% RH (No
condensation)
Power
• Mains power: 100 - 240V~, 50-60Hz, 1.5A
• Standby power consumption: <0.5 W
• Consumption (Max): 80 W
• Consumption (Typical): 50 W
• Power Saving Features: Smart Power
• Energy Label Class: G
Sound
• Built-in speakers: 2 x 10W RMS
Multimedia Applications
• USB Playback Video: MPEG, H.264, H.263, H.265
• USB Playback Picture: BMP, JPEG, PNG
• USB Playback Audio: AAC, HEAAC, MPEG
Accessories
• Included accessories: AC Power Cord, RS232
cable, Remote Control, Batteries for remote
control, Quick start guide
• Included Accessories: IR sensor cable (1.8 m) (x1),
RS232 daisy-chain cable, Philips logo (x1), USB
Cover and screw (x2)
• Stand: BM02541/BM05911(optional)
Miscellaneous
• Warranty: 3 year warranty
• On-Screen Display Languages: English, French,
German, Italian, Polish, Turkish, Russian, Simplified
Chinese, Spanish, Traditional Chinese, Arabic,
Japanese
• Regulatory approvals: CB, CE, BSMI, CU, EPA,
ETL, FCC, Class A, J-Moss, VCCI
Internal Player
• CPU: Dual core cortex A53 1.1G Hz, Dual core
cortex A73 1.15G Hz
• GPU: ARM Mali G51
• Memory: 2GB DDR3, 8GB
